Graco RoadLazer RoadPak System
Images are representations only.

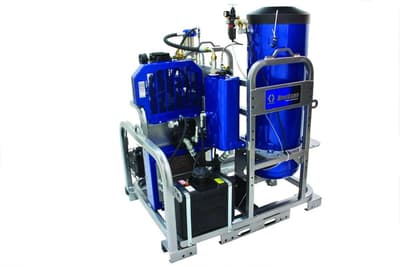

RoadLazer RoadPak System

Brand: Graco, Inc
Request Information

Graco RoadLazer RoadPak System
RoadLazer RoadPak System is a hydraulic striping system built for the professional road striping contractor.

With the RoadPak airless striping system you can achieve extremely accurate lines at highly productive speeds - up to 10 mph (16 km/h).
Features
  • Double-acting paint spray gun has complete chemical compatibility and highest flow rates available.
  • Double-acting bead spray gun has better on/off control and eliminates chattering often found in competitive guns.
  • Optional RoadView Camera System provides optimum forward viewing of existing or new lines.
  • Exclusive Graco displacement pumps for long life and low maintenance. 100% chemical compatibility with all traffic paints.
  • Spray gun boom arm for straighter lines and more accurate curves. Easily moves from centerline to edge-line.
  • 8 Ready to stripe RoadLazer RoadPak Systems
  • Modular striping system offers unlimited striping possibilities
  • 1 or 2 pump RoadPak for superior performance and crisp, clean stripes
  • Optional RoadView Camera System for optimum forward viewing and alignment from the cab for one person striping

Specifications

Brand

24G624 (1) Pump RoadPak

  • 386 kg

24G625 (2) Pump RoadPak

  • 431 kg

24G626 Hitch Mounting Frame

  • 54 kg

24G627 Slide-in Mounting Frame

  • 77 kg

24G629 (2) Pump Gun Arm

  • 61 kg

4.5 GPM at 2000 psi

  • 138 bar

Compressor Oil

  • 9502 SAE 30W Non-Detergent Oil

Engine, Kohler

  • 18 hp

Glass Bead Capacity

  • 204 kg

Glass Bead System

  • 5 bar

Hydraulic Oil

  • Graco Approved 169236 (5 Gallon) 207428 (1 Gallon) ISO 46

Hydraulic Oil Reservoir Capacity

  • 15 L

Hydraulics

  • 134 bar

Maximum

  • 14 bar

Minimum

  • 5.5 bar

Paint

  • 200 bar

Sound Power Level

  • 111.7 dB(A)

Sound Pressure Level

  • 91.7 dB(A)
