Graco Matrix
Images are representations only.

Matrix Automated, Wireless Oil Dispense Tracking & Bulk Tank Monitoring

Brand: Graco, Inc
Request Information
Favorite

Graco Matrix Graco Matrix Graco Matrix Graco Matrix
Matrix Total Fluid Management System provides automated tracking and monitoring plus state-of-the-art dispensing for complete control of your fluid inventory.

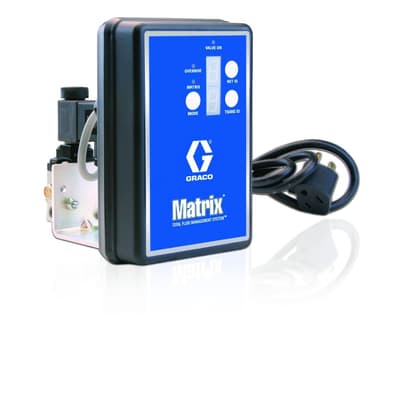

Save time, gain billable hours and maximize your fixed operation's profitability with Matrix. System components include management software, Transceiver, Matrix Meter, Pump Air Control (PAC) and Tank Level Monitor (TLM).

Together, these components wirelessly talk to each other through an RF signal to collect data from fluid dispenses, levels in bulk oil and waste tanks, plus much more!

Compatible with top systems, Graco Matrix easily integrates with common dealer management software, such as Reynolds & Reynolds, CDK Global (formally ADP), Procede and Dealertrack Software.
Features
  • Wireless transmission and reception of meter and tank level information make it simple to track your entire facility’s activities.
  • Customize to fit your business–three product platforms (Basic, Professional, and Premier) to fit any size facility.
  • Multi-level security to protect your assets.
  • Precise measurement and control of fluids ensures profits and eliminates out of stock issues for critical inventory.
  • Reynolds & Reynolds, CDK Global (formally ADP), Procede Software, and Dealertrack interfaces provide secure, reliable, data transfer between the Matrix database and the dealership management software.

Specifications

Brand

Accuracy†

  • ± 0.5 Percent

Battery**

  • 4 AA Alkaline or Lithium Batteries

Expected Battery Life in Typical Shop Environment

  • 6 Months

Flow Range

  • 0.4 to 53 Lpm

Fluid Compatibility

  • Antifreeze, Gear Oil, Crankcase Oil, ATF

Height

  • 14.6 cm

Inlet

  • 1/2”-14 NPT or 3/4-14 NPT

Length

  • 33 cm

Maximum Working Pressure

  • 103.4 bar

Meter Pressure Loss

  • 80 psi @ 10 gpm

Operating Temperature Range

  • -16° to 70° C

Outlet

  • 3/4-16 Straight Thread O-Ring Boss

Storage Temperature Range

  • -40° to 70° C

Units of Measure

  • Factory Set in Quarts. Max.
  • Pints, Quarts, Gallons, Liters (Factory Set to Quarts)

Weight

  • 2.26 kg

Wetted Parts

  • Aluminum, Stainless Steel, PBT/PC, Zinc, Nitrile Rubber, CS

Width

  • 9.5 cm

Documentation

Brochure

Document

Instructions

show more
