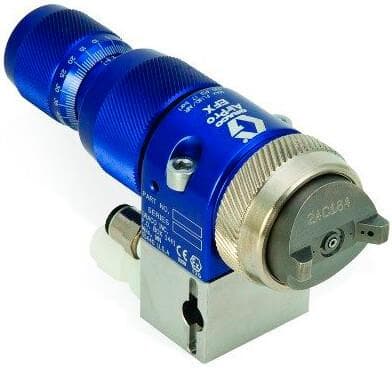

AirPro EFX Automatic Air Spray Gun
Images are representations only.

AirPro EFX Automatic Air Spray Gun

Brand: Graco, Inc
Request Information

AirPro EFX Automatic Air Spray Gun AirPro EFX Automatic Air Spray Gun AirPro EFX Automatic Air Spray Gun AirPro EFX Automatic Air Spray Gun
Graco's AirPro EFX is a complete line of air spray automatic guns with optimized performance for the most precise spray finishing.

All aspects of the AirPro EFX are designed to meet the demands of small component precision finishing.
Features
  • Aircaps and nozzles deliver superior, precision spray performance.
  • Precision fluid adjustment with a micrometer-telescoping knob.
  • High wear components designed for abrasive materials.
  • Excellent fluid flow rate stability and repeatability.
  • Compact and lightweight gun.

Specifications

Brand

Air Brush Guns Measured at 29 psi - Sound Power

  • 73.03 dB(A)

Air Brush Guns Measured at 29 psi - Sound Pressure

  • 66.28 dB(A)

Conventional Spray Guns Measured at 43 psi - Sound Power

  • 87.76 dB(A)

Conventional Spray Guns Measured at 43 psi - Sound Pressure

  • 81.11 dB(A)

HiTech Spray Guns Measured at 29 psi - Sound Power

  • 85.61 dB(A)

HiTech Spray Guns Measured at 29 psi - Sound Pressure

  • 79.23 dB(A)

HVLP Spray Guns Measured at 15 psi - Sound Power

  • 78.46 dB(A)

HVLP Spray Guns Measured at 15 psi - Sound Pressure

  • 71.82 dB(A)

LVMP Spray Guns Measured at 43 psi - Sound Power

  • 86.59 dB(A)

LVMP Spray Guns Measured at 43 psi - Sound Pressure

  • 79.92 dB(A)

Maximum HVLP Inbound Air Pressure

  • See the AirPro EFX Automatic Gun Instructions-Parts Manual.

Maximum Working Air Pressure

  • 7.0 bar, 0.7 MPa

Maximum Working Fluid Pressure

  • 7.0 bar, 0.7 MPa

Maximum Working Fluid Temperature

  • 49° C

Minimum Air Cylinder Actuation Pressure

  • 3.4 bar, 0.34 MPa

Weight with Manifold

  • 575 Gm

Weight with No Manifold

  • 275 Gm

Wetted Parts

  • See the AirPro EFX Automatic Gun Instructions-Parts Manual.
