XD Motor Rewind Hose Reels
Images are representations only.

XD Motor Rewind Hose Reels

Brand: Graco, Inc
Request Information
Favorite

XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels XD Motor Rewind Hose Reels

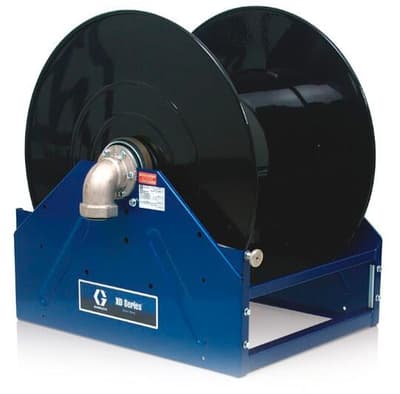

We like to think of the XD Motor Rewind Reels as Super-Powered.

The innovative design. is packed with features to help you work safer, smarter and faster. We demand extensive. product testing, often exceeding industry standards to ensure you get the best product. on the market.

Plus, it’s all backed with an industry leading warranty and support after. your purchase.
Features
  • Safe, Reliable Direct Drive Motors - Drive unit is clean and lubricated for life.
  • Motor options include direct drive hydraulic pneumatic and electric 12 Vdc, 24 Vdc, 115 Vac, and 230 Vac A Graco exclusive–breakthrough swivel design allows better flow to get work done faster.
  • Designed to surround and protect the drive unit from the elements to promote longer lasting, safer operation.
  • Band clamp brake is standard on all reels and adjustable for your application.
  • Heavy-duty one piece welded frame is built to flex to promote smoother operation, and handle the weight of heavy hoses.
  • Easily change the inlet and motor rotation direction to give you the option of a right or left hand inlet.
  • Removable gooseneck to allow for hassle-free hose installation.
  • Individually painted and powder coated components has superior corrosion resistance over assembled and painted products.
  • Choose the color that fits your installation- blue, yellow or white.

Specifications

Brand

Electric Motors: 115 Vac, 2/5 HP - Frequency

  • 50/60 Hz

Electric Motors: 115 Vac, 2/5 HP - Operating Voltage

  • 115 Vac

Electric Motors: 115 Vac, 2/5 HP - Rated Power

  • 0.3 Kw

Electric Motors: 115 Vac, 2/5 HP - Rated Speed

  • 500 rpm

Electric Motors: 115 Vac, 2/5 HP - Rating Current

  • 6.5 Amps

Electric Motors: 12 Vdc, 1/2 HP - Operating Voltage

  • 12 Vdc

Electric Motors: 12 Vdc, 1/2 HP - Rated Power

  • 0.4 Kw

Electric Motors: 12 Vdc, 1/2 HP - Rated Speed

  • 650 rpm

Electric Motors: 12 Vdc, 1/2 HP - Rating Current

  • 53 Amps

Electric Motors: 12 Vdc, 2/3 HP - Operating Voltage

  • 12 Vdc

Electric Motors: 12 Vdc, 2/3 HP - Rated Power

  • 0.5 Kw

Electric Motors: 12 Vdc, 2/3 HP - Rated Speed

  • 500 rpm

Electric Motors: 12 Vdc, 2/3 HP - Rating Current

  • 75 Amps

Electric Motors: 230 Vac, 1/2 HP - Frequency

  • 50/60 Hz

Electric Motors: 230 Vac, 1/2 HP - Operating Voltage

  • 230 Vac

Electric Motors: 230 Vac, 1/2 HP - Rated Power

  • 0.4 Kw

Electric Motors: 230 Vac, 1/2 HP - Rated Speed

  • 650 rpm

Electric Motors: 230 Vac, 1/2 HP - Rating Current

  • 3.7 Amps

Electric Motors: 24 Vdc, 1/2 HP - Operating Voltage

  • 24 Vdc

Electric Motors: 24 Vdc, 1/2 HP - Rated Power

  • 0.4 Kw

Electric Motors: 24 Vdc, 1/2 HP - Rated Speed

  • 650 rpm

Electric Motors: 24 Vdc, 1/2 HP - Rating Current

  • 26 Amps

Electric Motors: 24 Vdc, 2/3 HP - Operating Voltage

  • 24 Vdc

Electric Motors: 24 Vdc, 2/3 HP - Rated Power

  • 0.5 Kw

Electric Motors: 24 Vdc, 2/3 HP - Rated Speed

  • 500 rpm

Electric Motors: 24 Vdc, 2/3 HP - Rating Current

  • 38 Amps

Hydraulic Control (PN 127224, 127225) - Maximum Working Pressure

  • 206.8 bar, 20.6 MPa

Hydraulic Control (PN 127224, 127225) - Port Size

  • SAE-8

Hydraulic Control (PN 127224, 127225) - Regulated Flow Rate

  • 0 to 13.25 Lpm

Hydraulic Control (PN 127224, 127225) - Regulated Pressure Range

  • 0 to 137.9 bar, 13.79 MPa

Hydraulic Control (PN 127224, 127225) - Solenoid Power Consumption

  • 15-20 W

Hydraulic Control (PN 127224, 127225) - Temperature

  • -40° to 82° C

Hydraulic Control (PN 127224, 127225) - Wetted Materials

  • Anodized Aluminum, Steel, Zinc-Plated Steel, Buna-N Rubber, Tetrafluoro Ethylene, Polyester Elastomer

Hydraulic Motors - Inlet/Outlet

  • 7/8-14 UNF (O-Ring Boss Port)

Hydraulic Motors - Maximum Working Pressure

  • 137.9 bar, 13.8 MPa

Hydraulic Motors - Recommended Flow & Pressure

  • 3.79 Lpm @ 137.9 bar, 13.8

Hydraulic Motors - Recommended Hydraulic Fluid Filtration

  • 10 microns

Hydraulic Motors - Wetted Materials

  • Steel, Cast Iron, Buna-N Rubber

Inlet, Outlet Sizes - XD 6010, 7010, 8010

  • 1” NPT Female

Inlet, Outlet Sizes - XD 7015 / 8015

  • 1-1/2” NPT Female

Inlet, Outlet Sizes - XD 8020

  • 2” NPT Female

Materials of Construction - Reel Wetted Materials

  • Nickel-Plated Cast Iron, Cast Iron, Buna-N Rubber, Polyethylene

Noise (dBA) - Electric & Hydraulic Motors Sound Pressure Level†

  • Amp, Lt, 80 dBA

Noise (dBA) - Pneumatic Motors Sound Power Level‡

  • 89.9 dBA

Noise (dBA) - Pneumatic Motors Sound Pressure Level†

  • 84.6 dBA

Operating Temperature - Air/Water Applications

  • -40° to 82° C

Operating Temperature - Diesel Fuel Applications

  • -40° to 60° C

Operating Temperature - Grease Applications

  • -17.8° to 82° C

Operating Temperature - Motorless Reels

  • -40° to 82° C

Operating Temperature - Oil Applications

  • -40° to 82° C

Operating Temperature - Waste Oil Evacuation Applications

  • -40° to 82° C

Pneumatic Control (PN 127271) - Maximum Working Pressure

  • 13.8 bar, 1.3 MPa

Pneumatic Control (PN 127271) - Port Size

  • 3/8” NPT

Pneumatic Control (PN 127271) - Temperature

  • -17° to 49° C

Pneumatic Control (PN 127271) - Wetted Materials

  • Designed for Compressed Air Applications

Pneumatic Motors - Inlet/Outlet

  • 1/2” NPT

Pneumatic Motors - Maximum Working Pressure

  • 6.7 bar, 0.7 MPa

Pneumatic Motors - Recommended Flow & Pressure

  • 0.85 m³/minute @ 6.7 bar, 0.7

Pneumatic Motors - Wetted Materials

  • Steel, Cast Iron, Kevlar, Buna-N Rubber
