Graco Air-Assist Waterborne Isolation System, WB3000
Images are representations only.

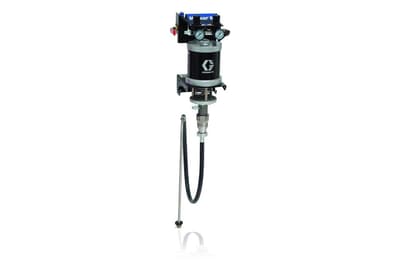

WB3000 Air-Assist Waterborne Isolation System

Brand: Graco, Inc
Request Information

Graco Air-Assist Waterborne Isolation System, WB3000 Graco Air-Assist Waterborne Isolation System, WB3000
Graco's WB3000 is the dependable way to isolate waterborne coatings when spraying with electrostatic equipment.

Ideal for spray booth systems.
Features
  • Ideal for high pressure waterborne material spraying with the Pro Xp60 AA WB gun for a superior finish quality and operator comfort.
  • Merkur ES 30:1 pump is one of the most efficient sprayers designed to use less material and reduce air usage and pulsation.
  • Standard voltage display allows for easy monitoring of voltage for overall performance.
  • Simple 5 gallon (19 l) pail design is easy to color change and flush the system.
  • Electrostatic gun Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
  • Portable cabinet increases mobility for a wide variety of applications.

Specifications

Brand

Air Inlet Fitting

  • 1/4 Male NPSM Left-hand Thread

Fluid Inlet Fitting

  • Custom Inlet for Graco Waterborne Fluid Hose.

Isolation Enclosure Air Inlet Fitting

  • 1/4 NPT

Isolation Enclosure Fluid Inlet Fitting

  • 10 mm O.D. Tube Fitting

Maximum Fluid Operating Temperature

  • 48° C

Maximum Working Air Pressure

  • 0.7 MPa, 7.0 bar

Maximum Working Fluid Pressure

  • 21 MPa, 210 bar

Minimum Air Pressure at Gun Inlet

  • 0.32 MPa, 3.2 bar

Short Circuit Current Output

  • 125 Microamperes

Sound Power (Measured Per ISO Standard 9216)

  • At 0.28 Mpa, 2.8 bar: 90.4 Db(a), at 0.7 Mpa, 7.0 bar: 105.4 Db(a)

Sound Pressure (Measured 1 m from Gun)

  • At 0.28 Mpa, 2.8 bar: 87.0 Db(a), at 0.7 Mpa, 7.0 bar: 99.0 Db(a)

Voltage Output Energy

  • 0.35 J with Fluid Hose 24M508 Installed. H60T18: 60 kV. H60M18: 30-60 kV

Wetted Parts

  • Gun: Stainless Steel, PEEK, UHMWPE, Fluoroelastomer, Acetal, Nylon, Polyethylene, Tungsten Wire. Waterborne Fluid Hose: PTFE. Suction Tube: Polyethylene, Stainless Steel. Merkur Pump: See Manual 3A0732.
