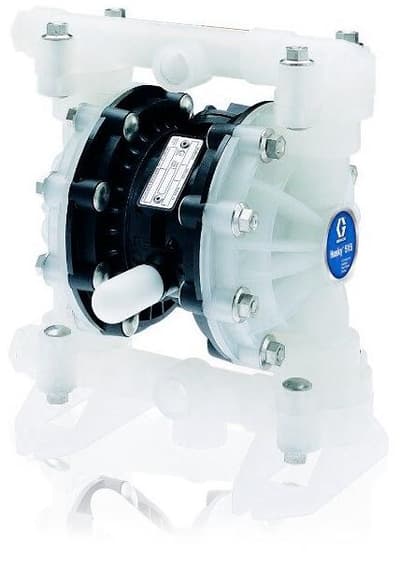

Husky 515 Air-Operated Diaphragm Pumps
Images are representations only.

Husky 515 Air-Operated Diaphragm Pumps

Brand: Graco, Inc
Request Information
Favorite

Husky 515 Air-Operated Diaphragm Pumps Husky 515 Air-Operated Diaphragm Pumps Husky 515 Air-Operated Diaphragm Pumps
The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.
Features
  • Fully-groundable acetal model.
  • Delivery up to 15 gpm (56.7 lpm).
  • Easy-to-service air valve and ball checks.
  • Reliable air valve for years of dependable performance.

Specifications

Brand

Air Pressure Operating Range

  • 2.1 to 7 bar, 0.2 to 0.7 MPa

Gallons (Liters) Per Cycle

  • 0.15

Inlet, Outlet Sizes - Air Exhaust Port Size

  • 3/8” NPT Female

Inlet, Outlet Sizes - Air Inlet Size

  • 1/4” NPT Female

Inlet, Outlet Sizes - Fluid Inlet Size

  • 1/2 & 3/4” NPT Female or BSPT(F)

Inlet, Outlet Sizes - Fluid Outlet Size

  • 1/2 & 3/4” NPT Female or BSPT(F)

Maximum Air Consumption

  • 0.672 m³/minute

Maximum Fluid Working Pressure

  • 7 bar, 0.7 MPa

Maximum Free Flow Delivery

  • 57 Lpm

Maximum Pump Speed

  • 400 cpm

Maximum Size Pumpable Solids

  • 2.5 mm

Maximum Suction Lift (Water with Buna Balls)

  • 4.5 m Dry, 7.6 m Wet

Non-Wetted External Parts - All Pumps

  • Polypropylene, Stainless Steel, Polyester & Aluminum (Labels), Nickel-Plated Brass

Operating Temperature Range

  • 82° C
  • 4° C
  • 107° C
  • 66° C

Sound Power Level - at 100 psig (0.7 MPa, 7 bar) at Maximum Cycles Per Minute

  • 95 dBA

Sound Power Level - at 70 psi (0.48 MPa, 4.8 bar) at 50 Cycles Per Minute

  • 77 dBA

Sound Pressure Level - at 70 psi (0.48 MPa, 4.8 bar) at 50 Cycles Per Minute

  • 67 dBA

Sound Pressure Level- at 100 psig (0.7 MPa, 7 bar) at Maximum Cycles Per Minute

  • 85 dBA

Weight - Acetal Pumps

  • 3.5 kg

Weight - Polypropylene Pumps

  • 2.9 kg

Weight - PVDF Pumps

  • 3.9 kg

Wetted Parts - Polypropylene Pumps

  • Polypropylene, PTFE

Wetted Parts (In Addition to Ball, Seat & Diaphragm Materials, Which Vary by Pump) - Acetal Pumps

  • Groundable Acetal, PTFE

Wetted Parts (In Addition to Ball, Seat & Diaphragm Materials, Which Vary by Pump) - PVDF Pumps

  • PVDF, PTFE
