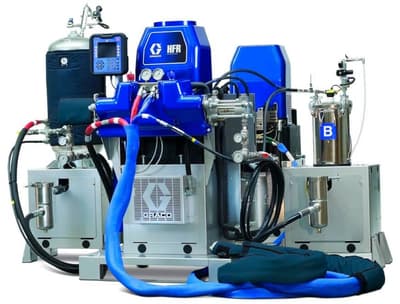

Hydraulic Fixed Ratio Polyurethane Processing System
Images are representations only.

Hydraulic Fixed Ratio Polyurethane Processing System

Brand: Graco, Inc
Request Information

The versatility of the Graco HFR Metering System is sure to re-define automotive NVH (noise, vibration, harshness) applications. It's modular design, combined with Graco technologies and precision dispensing capabilities provide automotive manufacturers with a system that is advanced, reliable and affordable. The Graco HFR Metering System for NVH Foams is an affordable alternative to traditional RIM systems. It is a standard configured product, not a custom-built machine. A lower initial investment allows manufacturers to use acoustical foam applications where it may not have been possible before.
  • More technology at a lower initial investment
  • Compact - smaller footprint saves valuable space
  • Lower cost of ownership - horizontal pumps can be rebuilt at your facility
  • Advanced controls monitor the system
  • Precision shots, repeatable dispensing
    • Features
  • Precision, on-ratio dispense reduces material waste for a better bottom line.
  • More technology for less money.
  • Fully configurable.
  • Stores 100 shot sizes and five sequences of 20 positions each.
  • Compact footprint saves space in your plant.
  • Intuitive, easy-to-use controls simplify training.
  • Integrated USB lets you download process data onto a flash drive for further analysis.

    • Specifications

    Brand

    Fluid Inlets - Component A (Red)

    • 1/2" NPT Female

    Fluid Inlets - Component B (Blue)

    • 3/4" NPT Female

    Fluid Outlet Size - Base Coat Pump

    • 1" QD Camlock Male Coupler

    Fluid Outlet Size - Top Coat Pump

    • 3/8" NPSM

    Fluid Outlets - Amperage Requirement

    • See Models in Instruction Manual 313997

    Fluid Outlets - Component A (Red)

    • #8 (1/2") JIC (3/4-16 UNF), with #5 (5/16") JIC Adapter

    Fluid Outlets - Component B (Blue)

    • #10 (5/8") JIC (7/8-14 UNF), with #6 (3/8") JIC Adapter

    Fluid Outlets - Fluid Circulation Ports

    • 1/4 Male NPSM, with Plastic Tubing, 17.5 bar, 1.75 MPa Max.

    Fluid Outlets - Line Voltage Requirement

    • 230 V / 1-Phase & 230 V / 3-Phase Models: 195-264 V, 50/60 Hz 400 V / 3-Phase: 360-440 V, 50/60 Hz

    Fluid Outlets - Sound Power

    • 93 dB

    Heater Power - A (Red) & B (Blue) Heaters Total, No Hose, Heated HFR Models Only

    • 12 KW

    Heater Power - Hydraulic Reservoir Capacity

    • 34 Liters

    Heater Power - Recommended Hydraulic Fluid

    • Citgo A/W Hydraulic Oil, ISO Grade 46

    Honda GX 200 Engine - ANSI Power Rating at 3600 RPM

    • 4.8 KW

    Inlet Paint Strainer - Base Coat Pump

    • 2" NPSM, #5 Mesh Stainless Steel

    Inlet Paint Strainer - Top Coat Pump

    • 1" NPSM, #8 Mesh Stainless Steel

    Maximum Delivery Rating - Base Coat Pump

    • 11.36 Liter/min

    Maximum Delivery Rating - Top Coat Pump

    • 8.33 Liter/min

    Maximum Tip Size - Base Coat Pump

    • 1 Applicator with 10 mm Nozzle

    Maximum Tip Size - Top Coat Pump

    • 1 Gun with 0.048" Tip, 2 Gun with 0.035" Tip, 3 Gun with 0.027" Tip, 4 Gun with 0.023" Tip

    Maximum Working Pressure - Base Coat Pump

    • 69 bar, 6.9 MPa

    Maximum Working Pressure - Top Coat Pump

    • 228 bar, 22.8 MPa

    Noise Level - Sound Power

    • 105 dB(A) per ISO 3744

    Noise Level - Sound Pressure

    • 96 dB(A) Measured at 1 M

    Pump Inlet Size - Base Coat Pump

    • 2" QD Camlock Male Coupler

    Pump Inlet Size - Top Coat Pump

    • 1" to 11.5 NPSM

    Weight - Units with 12 KW Heaters

    • 394 kg

    Weight - Units without Heaters

    • 288 kg

    Weight - Wetted Parts

    • Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, Ultra-High Molecular Weight Polyethylene, Chemically Resistant O-Rings

    Wetted Parts - Wetted Parts

    • Zinc-Plated Carbon Steel, PTFE, Nylon, Polyurethane, Uhmw, Polyethylene, Luoroelastomer, Acetal, Leather, Aluminum, Tungsten Carbide, Nickel- & Zinc-Plated Carbon Steel, Stainless Steel, Chrome Plating
