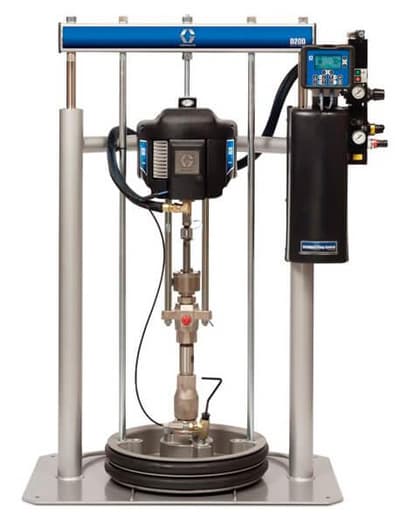

Ambient Supply Systems

Brand: Graco, Inc
Request Information
Favorite

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

For magnadrums & tote drums up to 1200 liter (300 gal) The Uni-Drum supply system evacuates 300 gallon (1200 liter) magnadrums and other tote drums of the same size and capacity.
Features
  • Industry-first controls give you immediate and important information at the touch of a button.
  • Quick placement of drum or pail.
  • Platen wipers can be replaced in seconds.
  • Pump's quick-disconnect coupler, turbuckle mount and pump cartridge packings let you service the pump without removing it from the ram.
  • High-quality, durable parts reduce maintenance time, maximize uptime.

Specifications

Brand

7: 255661, 30 Gal (115 L)

  • Zinc-Plated Carbon Steel, Epdm, Stainless Steel, Fluoroelastomer

8: 255662, 55 Gal (200 L)

  • PTFE, EPDM, PTFE-Coated Aluminum, Zinc-Plated Carbon Steel, 316 Stainless Steel

9: 255663, 55 Gal (200 L)

  • EPDM, Aluminum, Zinc-Plated Carbon Steel, 316 Stainless Steel

A: 255664, 55 Gal (200 L)

  • PTFE, Neoprene, Aluminum, Zinc-Plated Carbon Steel,

AC Power Units

  • 100-240 Vac, 50/60 Hz, single-Phase, 1.2 Amps Max.

B: 257727, 5 Gal (20 L), J: 257732, 8 Gal (30 L), S: 257737, 16 Gal (60 L)

  • Electroless Nickel, Polyurethane, Nitrile, Carbon Steel, Polyethylene, Zinc-Plated Carbon Steel, Buna, 316 Stainless Steel, 17-4 PH Stainless Steel

C: 257728, 5 Gal (20 L), K: 257733, 8 Gal (30 L), T: 257740, 16 Gal (60 L)

  • Electroless Nickel, Polyurethane, Carbon Steel, Polyethylene, Nitrile, Zinc-Plated Carbon Steel, Buna, 316 Stainless Steel 17-4 PH Stainless Steel

D200 - 3 in Dual Post, 55 Gal (200 L), 30 Gal (115 L),16 Gal (60 L), 8 Gal (30 L), 5 Gal (20 L)

  • 1.0 MPa, 10 bar / 3/4” NPT Female

D200s - 6.5 in Dual Post, 55 Gal (200 L), 30 Gal (115 L)

  • 0.9 MPa, 9 bar / 3/4” NPT Female

D60 - 3 in Dual Post, 16 Gal (60 L), 5 Gallon (20 L), 30 Gal

  • 1.0 MPa, 10 bar / 3/4” NPT Female

DC Power Units

  • 24 Vdc, 1.2 Amps Max. Draw

F : 257729, 5 Gal (20 L), L : 257734, 8 Gal (30 L), U : 257738, 16 Gal (60 L)

  • Stainless Steel, Polyurethane, PTFE-Coated Nitrile, Polyethylene, Nitrile, PTFE, 303 SST, 304 SST, 316 SST, 17-4 PH SST

G : 257730, 5 Gal (20 L), M : 257735, 8 Gal (30 L), W : 257739, 16 Gal (60 L)

  • Electroless Nickel, Aramind Reinforced Elastomer, Rubber--based PSA, Nitrile, Polyethylene, Zinc-Plated Carbon Steel, Buna, 1018 Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH

H : 257731, 5 Gal (20 L), R : 257736, 8 Gal (30 L), Y : 257741, 16 Gal (60 L)

  • Electroless Nickel, Aramind Reinforced Elastomer, Rubber--based PSA, Polyurethane, Polyethylene, Nitrile, Zinc-Plated Carbon Steel, Buna, 1018 Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel

L20c - 2 in Elevator, 5 Gal (20 L)

  • 0.7 MPa, 7 bar / 1/2 NPSM Female

S20 - 3 in Single Post, 5 Gal (20 L)

  • 0.9 MPa, 9 bar / 1/2” NPT Female
