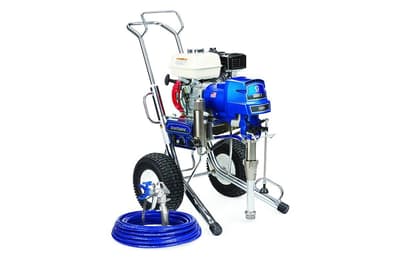

Graco Airless Sprayer, GMAX II 5900
Images are representations only.

GMAX II 5900 Gas-Mechanical Airless Sprayer

Brand: Graco, Inc
Request Information
Favorite

Graco Airless Sprayer, GMAX II 5900 Graco Airless Sprayer, GMAX II 5900 Graco Airless Sprayer, GMAX II 5900 Graco Airless Sprayer, GMAX II 5900 Graco Airless Sprayer, GMAX II 5900
With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.
Features
  • Advantage Drive System – Runs quiet and has a lifetime guarantee.
  • SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures.
  • Endurance Pump – Amazingly durable design lasts twice as long as the next leading brand.
  • Honda Engine – Delivers maximum performance and contractor preferred reliability.
  • Rugged Cart Design – Chrome over steel makes this durable cart last for years.
  • Easy Out Pump Filter – Less mess when changing or cleaning the filter.
  • Heavy-Duty Prime Valve – Maintenance free design withstands high pressure dumping. ProContractor Series has all the features of the Standard Series, plus:
  • QuikReel – Deploy and rewind up to 300 feet of hose in seconds with out twists, kinks or coils.
  • Ready To Spray – A total of 100 feet of hose and gun already installed.
  • ProConnect 2 – Change out the pump using no tools in seconds resulting in quickly getting back to work.
  • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
  • WatchDog – Save the pump from damage when paint runs out or a hose breaks.
  • On-Board Toolbox – End frustration and save time by never again searching for tips, filters, and tools. IronMan Series has all the features of the Standard Series, plus:
  • MaxLife Extreme Duty Pump – Keeps you working by running 6X longer between repacks.
  • Ceramic and Stainless Steel Ball Set – Ceramic and stainless steel ball sets provide maximum versatility no matter what you’re spraying.
  • ProConnect 2 – Change out the pump using no tools in seconds resulting in quickly getting back to work.
  • Roll Cage Frame – Innovative steel design withstands rugged environments and protects critical sprayer components.
  • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
  • Flat-Proof Tires – Roll through even the worst jobsite debris without ever going flat.
  • WatchDog – Save the pump from damage when paint runs out or if a hose breaks.
  • Additional 50 ft of Hose – Gives you the versatility to work farther away from the sprayer.
  • Also available in Lo-Boy configuration with same features as Standard Series plus ProConnect 2 Pump System.The Lo-Boy configuration is not available in Europe, Middle East & Africa.
  • Also available in a Convertible configuration with same features as Standard Series plus the ability to utilize either a gas engine or electric motor.The Convertible configuration is not available in Europe, Middle East & Africa. Standard Series, Convertible and Lo-Boy units include:
  • Contractor Gun
  • RAC X 517 SwitchTip and Guard
  • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose ProContractor Series unit includes:
  • Contractor Gun
  • RAC X 517 SwitchTip and Guard
  • 2 each – 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose IronMan Series unit includes:
  • Silver Plus Gun
  • RAC X 517 SwitchTip and Guard
  • RAC X Wide RAC 1231 SwitchTip
  • 3/8 in x 50 ft (9.5 mm x 15 m) BlueMax II Airless Hose
  • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose

Specifications

Brand

Height - GMaximum 5900 Convertible, Standard

  • 111.3 cm

Height - GMaximum 5900 IronMan

  • 98.6 cm

Height - GMaximum 5900 Lo-Boy

  • 69.1 cm

Height - GMaximum 5900 ProContractor

  • 96.5 cm

Height - GMaximum 5900 Standard

  • 102.9 cm

Height - TexSpray 5900HD ProContractor

  • 98.6 cm

Height - TexSpray 5900HD Standard

  • 102.9 cm

Honda GX120 Engine - ANSI Power Rating at 3600 RPM

  • 4.1 KW

Length - GMaximum 5900 Convertible, Standard

  • 83.8 cm

Length - GMaximum 5900 IronMan

  • 102.6 cm

Length - GMaximum 5900 Lo-Boy

  • 119.1 cm

Length - GMaximum 5900 ProContractor

  • 83.1 cm

Length - GMaximum 5900 Standard

  • 95.8 cm

Length - TexSpray 5900HD ProContractor

  • 83.1 cm

Length - TexSpray 5900HD Standard

  • 95.8 cm

Noise Level - Sound Power

  • 105 dBA Per ISO 3744

Noise Level - Sound Pressure

  • 96 dBA Measured at 1 M

Sprayer - 2 Guns with 0.029 Inch Tip

  • 2 Guns with 0.029” Tip

Sprayer - 3 Guns with 0.023 Inch Tip

  • 3 Guns with 0.023” Tip

Sprayer - 4 Guns with 0.019 Inch Tip

  • 4 Guns with 0.019” Tip

Sprayer - Fluid Outlet Size

  • 1/4 NPSM from Fluid Filter

Sprayer - Fluid Outlet Size (5900 IronMan & 5900HD)

  • 3/8” NPSM from Fluid Filter

Sprayer - Inlet Paint Strainer

  • 8 Mesh (2589 micron) Stainless Steel Screen, Reusable

Sprayer - Maximum Delivery Rating

  • 6.06 Lpm

Sprayer - Maximum Tip Size

  • 1 Gun with 0.043” Tip

Sprayer - Maximum Working Pressure

  • 228 bar, 22.8 MPa

Sprayer - Outlet Paint Filter

  • 60 Mesh (250 micron) Stainless Steel Screen, Reusable

Sprayer - Pump Inlet Size

  • 1-5/16-12 UN-2A

Sprayer - Wetted Parts

  • Zinc & Nickel-Plated Carbon Steel, PTFE, Nylon, Polyurethane, Uhmw, Fluoroelastomer, Acetal, Leather, Aluminum, Tungsten Carbide, Stainless Steel, Chrome Plating

Weight - GMaximum 5900 Convertible, Standard

  • 75.9 kg

Weight - GMaximum 5900 IronMan

  • 72.7 kg

Weight - GMaximum 5900 Lo-Boy

  • 65.5 kg

Weight - GMaximum 5900 ProContractor

  • 72.7 kg

Weight - GMaximum 5900 Standard

  • 62.7 kg

Weight - TexSpray 5900HD ProContractor

  • 74.5 kg

Weight - TexSpray 5900HD Standard

  • 64.5 kg

Width - All

  • 62.0 cm
