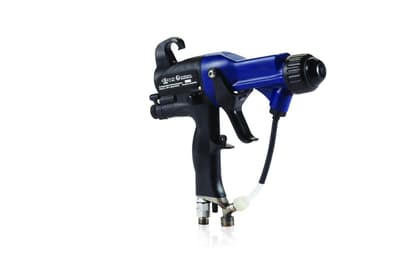

Graco Electrostatic Spray Gun, Pro Xp60
Images are representations only.

Pro Xp60 Electrostatic Spray Guns

Brand: Graco, Inc
Request Information
Favorite

Graco Electrostatic Spray Gun, Pro Xp60 Graco Electrostatic Spray Gun, Pro Xp60 Graco Electrostatic Spray Gun, Pro Xp60
Pro Xp60 Air Spray gun line includes Standard, Smart, High Conductivity, Round Spray and Waterborne models.

The additional gun models combine the benefits of material savings and excellent finish quality into a smaller and lighter gun body, making it easier to spray.
Features
  • The smallest profile gun with internal power supply on the market - 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter.
  • Reduce muscle strain with the lighter trigger pull.
  • Smart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
  • Made in the USA.
  • Rugged, dependable design supported by a three year warranty.
  • Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements.

Specifications

Brand

Air Inlet Fitting

  • 1/4 Male NPSM Left-hand Thread

Fluid Inlet Fitting

  • 3/8 Male NPSM

Maximum Current Draw

  • 125 Microamperes

Maximum Fluid Operating Temperature

  • 48° C

Maximum Working Air Pressure

  • 0.7 MPa, 7.0 bar

Maximum Working Fluid Pressure

  • 0.7 MPa, 7.0 bar

Minimum Air Pressure at Gun Inlet

  • 0.32 MPa, 3.2 bar

Output Voltage

  • Pro Xp40 Models: 40 kVPro Xp60 Models: 60 kVPro Xp85 Models: 85 kV

Paint Resistivity Range

  • 3 Megohm/cm to Infinity. for a Table of Electrostatic Results at Different Resistance Levels, See Instruction Manual..

Sound Power (Measured Per ISO Standard 9216)

  • At 0.28 Mpa, 2.8 bar: 90.4 Db(a)at 0.7 Mpa, 7.0 bar: 105.4 Db(a)

Sound Pressure (Measured 1 m from Gun)

  • At 0.28 Mpa, 2.8 bar: 87.0 Db(a) at 0.7 Mpa, 7.0 bar: 99.0 Db(a)

Wetted Parts

  • PEEK, UHMWPE, FEP, PTFE, Acetal, Nylon, Polyethylene
