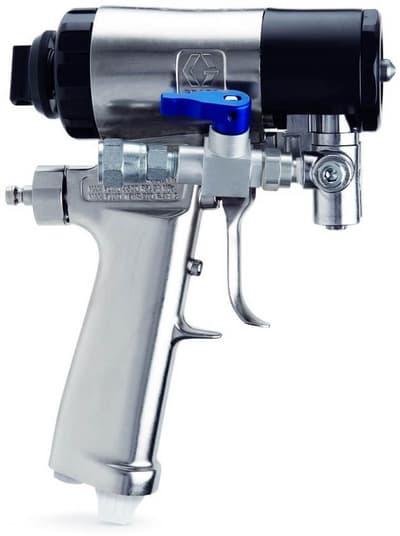

Fusion CS Plural-Component Spray Gun with ClearShot™ Technology
Images are representations only.

Fusion CS Plural-Component Spray Gun with ClearShot™ Technology

Brand: Graco, Inc
Request Information
Favorite

ClearShot Technology sets the Fusion CS gun apart from every other applicator.

With its revolutionary technology, the Fusion CS is poised to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance.

Flexible for polyurea and foam applications, this gun provides you with versatile advantages.
Features
  • New technology comprised of ClearShot Liquid and disposable, non-reusable ClearShot Cartridge
  • Removes foam and keeps mix chamber clear
  • Saves almost an hour of maintenance time each spray day
  • First-ever liquid purge – reduces purge air by 75% and minimizes foam blowback
  • Easy-to-insert cartridge fits into ergonomic handle
  • Variable flow - an industry first
  • First plural-component gun with variable flow
  • Switch from large to small spray patterns in seconds
  • Gives you more maneuverability to spray in small, tight areas
  • Ten different settings
  • Quick-change front - simpler and cleaner
  • Swap out fluid heads in seconds
  • Non-stick polymer cover keeps gun head cleaner
  • "Air knife" reduces material build-up
  • Fast and simple change-outs put an end to lengthy interruptions and keep jobs on schedule

Specifications

Brand

A Component (ISO) Inlet Size

  • -5 JIC, 1/2-20 UNF

Air Flow Range

  • See Chart in Instruction Manual

Air Inlet Size

  • 1/4” NPT Quick Disconnect Nipple

B Component (Resin) Inlet Size

  • -6 JIC, 9/16-18 UNF

Dimensions

  • 191 x 206 x 84 mm

Maximum Air Inlet Pressure

  • 9 bar, 0.9 MPa

Maximum Fluid Temperature

  • 94° C

Maximum Fluid Working Pressure

  • 245 bar, 24.5 MPa

Minimum Air Inlet Pressure

  • 5.6 bar, 0.56 MPa

Sound Power, Measured Per ISO 9416-2

  • 73.45 dBA, Using RD0202 at 100 psi, (0.7 MPa, 7 bar)

Sound Pressure

  • 75.27 dBA, Using RD0202 at 100 psi, (0.7 MPa, 7 bar)

Weight

  • 1.18 kg

Wetted Parts

  • Aluminum, Stainless Steel, Carbon Steel, Carbide, Chemically Resistant O-Rings
