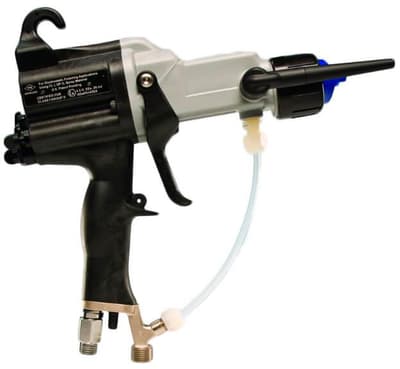

Pro Xs Waterborne Electrostatic Guns
Images are representations only.

Pro Xs Waterborne Electrostatic Guns

Brand: Graco, Inc
Request Information
Favorite

Ideal for spraying waterborne materials on circulation systems, the Pro Xs waterborne electrostatic gun reduces operating costs and material usage.

The fluid remains grounded in the gun, no isolation system is needed for operation.
Features
  • Superior atomization for a high quality finish.
  • Internal power supply allows for quick installation and easy service.
  • Lightweight and compact design increases operator comfort.
  • External charging probe is quick release for easy changeout.
  • Rugged design outlasts the competition.
  • Display monitors voltage and current.
  • The fluid remains grounded in the gun, no isolation system is needed for operation.

Specifications

Brand

Air Inlet Fitting, Left Hand Thread

  • 1/4 Male NPSM

Fluid Inlet Fitting

  • 3/8 Male NPSM

Gun Length (with Probe)

  • 24.6 cm

Maximum Fluid Operating Temperature

  • 48° C

Maximum Voltage Output

  • 60 kV

Maximum Working Air Pressure

  • 7.0 bar, 0.7 MPa

Maximum Working Fluid Pressure

  • 7.0 bar, 0.7 MPa

Model 247936

  • 634 Gm

Model 247937

  • 712 Gm

Paint Resistivity

  • Less than 1 Megohm-Cm

Sound Power at 100 psi (0.7 MPa, 7 bar)

  • 105.4 dBA

Sound Power at 40 psi (0.28 MPa, 2.8 bar)

  • 90.4 dBA

Sound Pressure at 100 psi (0.7 MPa, 7 bar)

  • 99 dBA

Sound Pressure at 40 psi (0.28 MPa, 2.8 bar)

  • 87 dBA

Wetted Parts

  • Stainless Steel, Nylon, Acetal, Ultra High Molecular Weight Polyethylene, Fluoroelastomer, PEEK, Tungsten Wire, Polyethylene
