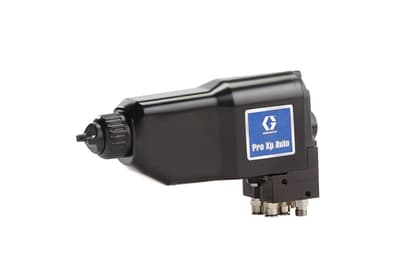

Graco Electrostatic Spray Gun, Pro Xp
Images are representations only.

Pro Xp Auto Air Spray Electrostatic Spray Guns

Brand: Graco, Inc
Request Information

Graco Electrostatic Spray Gun, Pro Xp Graco Electrostatic Spray Gun, Pro Xp
Get the spray performance and transfer efficiency of our manual Pro Xp guns in an automatic version.

They’re smaller, lighter and designed to maximize your profits.

Every automatic Pro Xp gun is tested and delivered with a certificate indicating it meets all of Graco’s requirements for spray pattern, mechanical performance and electrical performance so you know you’re getting a quality product.

The Pro Xp Auto smart gun models connect right to the control module so you can see exactly how your gun is performing 24/7.

 With our control module, you can easily change the kV setting to optimize spray parameters for less touch up and a better finish quality on your parts. Electrostic gun do not include a control module or fiber optic cable. Order items separately.
Features
  • Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns.
  • Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting.
  • 85 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing.
  • Higher transfer efficiency equals less waste, saving you money on material.
  • Made in the USA.
  • Durable components reduce cost of ownership, supported by a three year warranty.

Specifications

Brand

Atomizing Air Inlet Fitting

  • 5/16" O.D. Nylon Tube (8 mm)

Cylinder Air Inlet Fitting

  • 5/32" O.D. Nylon Tube (4 mm)

Fan Air Inlet Fitting

  • 5/16" O.D. Nylon Tube (8 mm)

Fluid Inlet Fitting

  • 1/4-18 Male NPSM

Gun Weight

  • 1.2 kg

Maximum Fluid Operating Temperature

  • 48° C

Maximum Fluid Working Pressure

  • 0.7 MPa, 7 bar

Maximum Working Air Pressure

  • 0.7 MPa, 7 bar

Paint Resistivity Range

  • 3 Megohm/cm to Infinity. *For A Table of Electrostatic Results at Different Resistance Levels See, Check Fluid Resistivity, See Instruction Manual.

Short Circuit Current Output

  • 125 Microamperes

Smart Models

  • 40-85 kV

Sound Power (Measured Per ISO 9216 Standard

  • At 0.28 Mpa, 2.8 bar: 90.4 Db(a) at 0.7 Mpa, 7 bar: 105.4 Db(a)

Sound Pressure (Measured 1 m from Gun)

  • At 0.28 Mpa, 2.8 bar: 87 Db(a) at 0.7 Mpa, 7 bar: 99 Db(a)

Standard Models

  • 85 kV

Turbine Air Inlet Fitting, Left-hand Thread

  • 1/4 Male NPSM

Wetted Parts

  • Stainless Steel, Nylon, Acetal, Ultra-High Molecular Weight Polyethylene, Fluoroelastomer, PEEK, Tungsten Carbide, Polyethylene
