FinishPro II 395 PC Air-Assisted Airless Sprayer
Images are representations only.

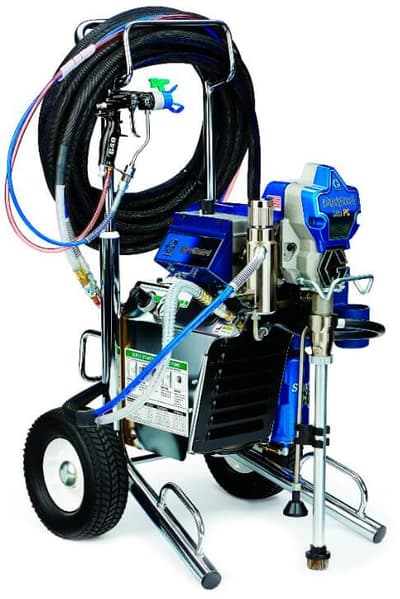

FinishPro II 395 PC Air-Assisted Airless Sprayer

Brand: Graco, Inc
Request Information
Favorite

FinishPro II 395 PC Air-Assisted Airless Sprayer FinishPro II 395 PC Air-Assisted Airless Sprayer
With features that make a great sprayer even better, the FinishPro™ II 395 PC is Graco’s premier solution to fine finishing.

It delivers a high quality finish at a high production rate, and can handle the most challenging materials.
Features
  • Fast and easy on-the-job Pump Replacement System.
  • 1-minute jobsite replacement in 3 simple steps.
  • Pinless design eliminates the chance of losing parts during the change-out process.
  • Endurance™ Now program available. SmartComp™:
  • Compressor is activated by the gun trigger—if you’re not spraying, it’s not running!.
  • Reduces jobsite noise, resulting in less fatigue.
  • Automatic shut-off reduces moisture entering the system and extends compressor life.
  • Pulling trigger delivers instant air to the gun with zero lag.
  • Release the trigger and SmartComp shuts off the compressor after 5 seconds.
  • Extends compressor life. High-Output On-Board Air Compressor:
  • Ideal for on-site finish jobs.
  • Delivers 3.2 cfm at 35 psi—enough air to break up the heaviest of materials.
  • Exclusive Pressure Unloader results in quieter operation.
  • Cooling coil reduces air temperature, extending the life of the critical compontents and providing safer operator handling. Endurance™ Pump:
  • The most reliable pump on the market—lasts 2 times longer than the next leading brand.
  • Long-life V-Max Blue™ packings, Chromex™ rod and hardened stainless steel cylinder.
  • QuikAccess™ intake valve for fast cleaning or debris clearing. Super-Flex™ Hose Set:
  • The flexibility to get into tight spaces—focus on the task, not the tool!.
  • Extremely lightweight in hand, which reduces fatigue.
  • Connects directly to the gun for maximum flexibility.
  • Flex Wrap hose skin protects from paint build up and increases hose durability. Improved G40 Spray Gun:
  • An industrial quality air-assisted spray gun that delivers superior finishing results.
  • Integrated air valve improves gun handling.
  • RAC X™ air cap included.
  • Flat tip conversion kit included. SmartControl™ 1.0:
  • Delivers a consistent spray fan without pressure fluctuation at all spraying pressures.
  • Ideal for smaller tips commonly used for fine finish work.
  • Digital display accurately shows spraying pressure. Two Sprayers in One!:
  • Select air-assisted or airless modes, depending on what’s best for the application. Self-Contained & Portable:
  • One plug runs the entire unit, simplifying jobsite operation Single Selector Switch:
  • Simple, color-coded labels easily identify airless and air-assisted modes. Includes:
  • G40 Gun Air-Assisted Airless Gun
  • 50 ft Super Flex Hose Set
  • 1/4 in x 50 ft (6.4 mm x 15.2 m) Fluid Hose
  • 1/8 in x 6 ft (3.2 mm x 1.8 m) Fluid Whip Hose
  • 3/8 in x 50 ft (9.5 mm x 15.2 m) Air Hose
  • 1/4 in x 6 ft (6.4 mm x 1.8 m) Air Whip Hose
  • RAC X FFT210 SwitchTip
  • RAC X LTX517 SwitchTip
  • Precision Cut Fine Finish Flat Tip Kit
  • AAM309 Flat Tip
  • 100 Mesh Gun Filter

Specifications

Brand

Atomizing Air Output - Air Pressure

  • 2.4 bar

Atomizing Air Output - Europe / Asia / Australia

  • 2.9 cfm

Atomizing Air Output - US / UK

  • 3.2 cfm

Dimensions - Height

  • 102.8 cm

Dimensions - Length

  • 82.5 cm

Dimensions - Weight (Bare)

  • 49.9 kg

Dimensions - Width

  • 53.3 cm

Materials of Construction - Air Hose

  • 3/8” x 15.2 M (Clear)

Materials of Construction - Compressor Motor

  • 1.0 hp AC Induction

Materials of Construction - Gun

  • G40 W RAC x Tip

Materials of Construction - Material Hose

  • 1/4” x 15.2 m (Blue)

Materials of Construction - Pump Motor

  • TEFC 7/8 hp DC

Materials of Construction - Wetted Materials on All Models

  • Zinc & Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane

Maximum Material Output gpm (Lpm) - Europe / Asia / Australia

  • 2.0 Lpm

Maximum Material Output gpm (Lpm) - US / UK

  • 1.8 Lpm

Maximum Material Pressure - AA - Europe / Asia / Australia

  • 228 bar, 22.8 MPa

Maximum Material Pressure - AA - US / UK

  • 193 bar, 19.3 MPa

Maximum Material Pressure - Airless - Europe / Asia / Australia

  • 228 bar, 22.8 MPa

Maximum Material Pressure - Airless - UK

  • 193 bar, 19.3 MPa

Maximum Material Pressure - Airless - US

  • 228 bar, 22.8 MPa

Maximum Tip Size - Europe / Asia / Australia

  • 0.023

Maximum Tip Size - US / UK

  • 0.021

Noise** (dBA) Level at 70 psi (4.8 bar, 0.48 MPa) - Sound Power

  • 96 dBA

Noise** (dBA) Level at 70 psi (4.8 bar, 0.48 MPa) - Sound Pressure

  • 79 dBA

Sprayer - Generator Minimum

  • 4000 W

Sprayer - Power Requirements

  • 230 Vac, 50/60 Hz, 10 A, 1Ø
