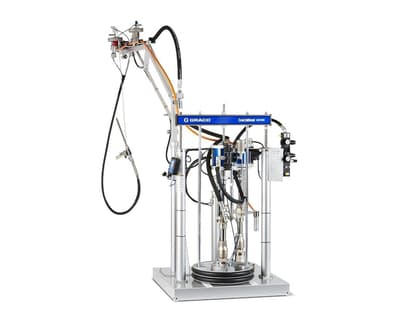

Graco Proportioner, ExactaBlend AGP
Images are representations only.

ExactaBlend Advanced Glazing Proportioner

Brand: Graco, Inc
Request Information
Favorite

Graco Proportioner, ExactaBlend AGP
The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications.

The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Features
  • Superior mixing and ratio assurance for the glass industry
  • Easy to operate.
  • Green light indicates on-ratio dispensing.
  • System automatically shuts down if off-ratio conditions exist.
  • Optimal mixing and on-ratio proportioning capabilities for quality assurance.
  • Quick and easy base purge reduces material waste.
  • Optional data download provides reports on ratio, flow rate and material usage.

Specifications

Brand

Air Inlet Size

  • 3/4” NPT Female

All Models

  • 392 kg

Amperage, Maximum

  • 4

Fluid Outlet Base

  • 1/2” NPT Female

Fluid Outlet Catalyst

  • 1/4” NPT Female

Incoming Air Pressure Required

  • 0.6 - 0.7 MPa, 6.0 - 7.0 bar

Maximum Fluid Working Pressure : MD2 or Ultra-lite with Flexible Hose Mixer Installed

  • 21 MPa, 207 bar

Maximum Fluid Working Pressure :Ultra-lite with Tri-Core Mixer Installed

  • 28 MPa, 276 bar

Maximum Operating Temperature

  • 50° C

Sound Pressure: Sound Pressure Measured 3.3 Feet (1 meter) from Equipment.

  • 82 dBA

Voltage Range

  • 90-264 Vac 50/60 Hz 1-Phase

Wetted Parts: Refer to Specific Component Manual for More Details.

  • Zinc-Plated Carbon Steel, Aluminum Ram Plate, Nitrile Rubber Wipers, Chrome, Stainless Steel, UHMW Polyethylene, PTFE, Nylon, Buna-N
