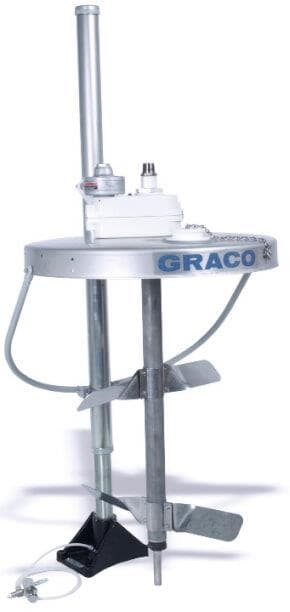

Heavy-Duty Back Geared Drum Agitators

Brand: Graco, Inc
Request Information
Favorite

Agitator assemblies for open drums and tanks. Ideal for high viscosity materials.
Features
  • Leak-free and oil-less gearbox prevents material contamination.
  • Twin paddles thoroughly mix finishing materials.
  • Siphon option allows material transfer though agitator shaft.
  • Elevator safely and easily lifts agitator in and out of paint drum, reducing injuries and spills.
  • Sample and inspect material during operation using the access port.

Specifications

Brand

Air Consumption

  • 0.08 to 0.85 m³/min

Air Inlet Size

  • Mates with 1/4” NPT Female Quick-disconnect, Part No. 208536

From Top of Air Motor to End of Agitator Shaft (No Nut)

  • 965 mm

From Top of Air Motor to End of Siphon Tube (No Fittings)

  • 1092 mm

Gear Reducer Ratio

  • 12 / 31 / 1899 0:01

Maximum Air Input Pressure

  • 7 bar

Maximum Flow at 100 cps

  • 45.5 Lpm

Maximum Flow at 1000 cps

  • 4.5 Lpm

Maximum Recommended Shaft Rmp

  • 100

Motor Power Rating at 1200 RPM (Shaft at 50 RPM), Using 12 cfm/0.34 Cu m/min

  • 186 W

Sound Power (Maximum Noise Conditions (100 RPM (Shaft) Agitating An Empty Container))

  • 86.4 dBA Measured Per ISO 3744-1981

Sound Power (Typical Operating Conditions (50 RPM (Shaft) Agitating 300 cps Water-based Material))

  • 77.3 dBA Measured Per ISO 3744-1981

Sound Pressure (Maximum Noise Conditions (100 RPM (Shaft) Agitating An Empty Container))

  • 72.9 dBA Measured Per ISO 3744-1981

Sound Pressure Agitating 300 cps Water-based Material))

  • 63.8 dBA Measured Per ISO 3744-1981

Span of Agitator Blades

  • 508 mm

Weight

  • 11.7 kg

Wetted Parts

  • 304 Stainless Steel, 304/304L Stainless Steel, Acetal, A/F, Nylon, PTFE

Width of Agitator Blades

  • 76 mm
