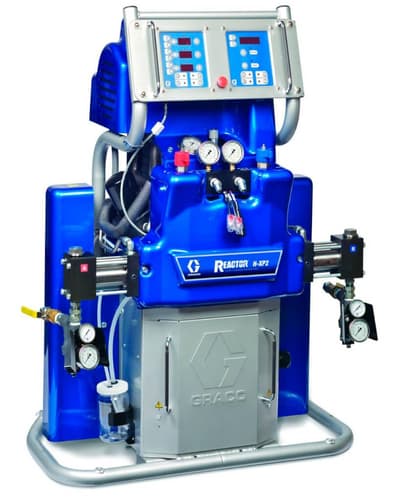

Reactor H-XP2 and H-XP3 Hydraulic Coatings Proportioners
Images are representations only.

Reactor H-XP2 & H-XP3 Hydraulic Coatings Proportioners

Brand: Graco, Inc
Request Information
Favorite

Designed for applying polyurea and other coatings that require high pressures, the Reactor H-XP2 and H-XP3 provide superior power and performance for high-output applications.

Hybrid heaters heat material quickly and maintain temperature set points, even when you're spraying at maximum flow rates. With the Reactor H-Series for coatings, you add productivity to your workday and boost your bottom line as well.
Features
  • Powerful hybrid heaters – heat material quickly and maintain temperature set points, even when spraying at maximum flow rates
  • Digital heat and pressure controls – let you program temperatures and pressures, and monitor machine performance
  • Horizontal positive displacement pumps – easy to service and provide smoother changeover for maintaining best spray pattern

Specifications

Brand

Amperage Requirement

  • See Systems Page in Instruction Manual.

Fluid Circulation Ports

  • 1/4 Male NPSM, with Plastic Tubing, (1.75 MPa, 17.5 bar) Max.

Fluid Inlets

  • Component A (ISO): 1/2” NPT Female, (1.75 MPa, 17.5 bar) Max.

Fluid Outlets

  • Component A (ISO): #8 (1/2”) JIC, with #5 (5/16”) JIC Adapter. Component B (RES): #10 (5/8”) JIC, with #6 (3/8”) JIC Adapter

Fluid: Oil Pressure Ratio

  • Models H-25 & H-40:1.91:1. Model H-50:1.64:1. Models H-XP2 & H-XP3:2.79:1

Heater Power (A & B Heaters Total, No Hose)

  • See Systems Page in Instruction Manual.

Hydraulic Reservoir Capacity

  • (13.6 Liters)

Line Voltage Requirement

  • 230 V 1-Phase & 230 V 3-Phase Units: 195-264 Vac, 50/60 Hz 400 V 3-Phase Units: 338-457 Vac, 50/60 Hz

Maximum Fluid Temperature

  • 88° C

Maximum Fluid Working Pressure

  • Models H-25 & H-40: (13.8 MPa, 138 bar) Model H-50 1-Phase: (11.7 MPa, 11.7 bar) Model H-50 3-Phase: (13.8 MPa, 138 bar) Models H-XP2 & H-XP3: (24.1 MPa, 241 bar)

Maximum Output (10 Weight Oil at Ambient Temperature)

  • Model H-25: 22 lbs/min (10 kg/min) (60 Hz). Model H-XP2: 1.5 gpm (5.7 Liter/min) (60 Hz). Model H-50: 52 lbs/min (24 kg/min) (60 Hz). Model H-40: 45 lbs/min (20 kg/min) (60 Hz). Model H-XP3: 2.8 gpm (10.6 Liter/min) (60 Hz)

Output Per Cycle, A & B

  • Models H-25 & H-40: (0.23 Liter). Model H-50: (0.28 Liter). Models H-XP2 & H-XP3: (0.16 Liter)

Recommended Hydraulic Fluid

  • Citgo A/W Hydraulic Oil, ISO Grade 46

Sound Power, Per ISO 9614-2

  • 90.2 dBA

Sound Pressure, 1 m from Equipment

  • 82.6 dBA

Weight

  • Units with 8.0 KW Heaters: (243 kg). Units with 12.0 KW Heaters: (271 kg). Units with 15.3 KW Heaters (H-25/H-XP2 Models): (255 kg). Units with 15.3 KW Heaters (H-40/H-XP3/H-50 Models): (271 kg). Units with 20.4 KW Heaters: (271 kg)

Wetted Parts

  • Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, Ultra-High Molecular Weight Polyethylene, Chemically Resistant O-Rings
