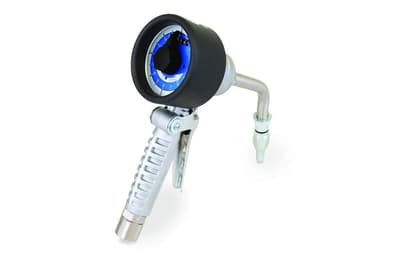

Graco Mechanical Meter
Images are representations only.

Mechanical Meters

Brand: Graco, Inc
Request Information
Favorite

Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter Graco Mechanical Meter
Graco offers a family of engineered meters, focused on delivering a long-life reliable solution.

Each model is vigorously tested to ensure the highest performance for your demanding applications.
Features
  • 8 gpm (30 lpm) maximum flow rate.
  • Choose from preset or manual options.
  • Balanced, lightweight, rugged construction with a comfort grip.
  • Non-resettable totalizing register.
  • Handles variety of petroleum and synthetic based oils and anti-freeze.
  • Accurate dispense quantities.
  • Ideal for indoor or outdoor use.

Specifications

Brand

Accuracy - Manual Meter: Antifreeze

  • ± 3 Percent

Accuracy - Manual Meter: Oil

  • ± 1 Percent

Accuracy - Preset Meter: Oil or Antifreeze

  • ± 3 Percent

Flow Rates

  • 1 to 30 Lpm

Fluid Compatibility

  • Antifreeze, Gear Oil, Crankcase Oil

Height Manual Meter

  • 12.3 cm

Height Preset Meter

  • 16.08 cm

Inlet

  • 1/2”-14 NPT

Length

  • 28.9 cm

Manual Meter

  • 1.55 kg

Maximum Totalizer Digits

  • 99,999 Units**

Maximum Working Pressure

  • 10 MPa, 103.4 bar

Meter Pressure Loss

  • 30 psi @ 4 gpm

Operating Temperature Range

  • -45° to 70° C

Outlet

  • 3/4-16 Straight Thread O-Ring Boss

Preset Meter

  • 1.58 kg

Wetted Parts

  • Brass, Aluminum, Stainless Steel, Tpe

Width

  • 10 cm
