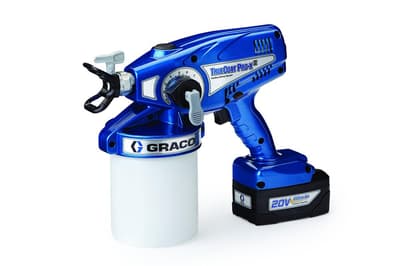

Graco Airless Handheld Sprayer, TrueCoat Pro-X II
Images are representations only.

TrueCoat Pro-X II Cordless Airless Handheld Sprayer

Brand: Graco, Inc
Request Information
Favorite

The TrueCoat Pro-X II cordless airless sprayer now includes a ProControl Pressure Control System that allows you to adjust the pressure to spray a wider variety of applications.

Also included in the next generation TrueCoat Pro-X II sprayer is a full motion of spraying with the new Tilt-N-Spray pendulum suction tube design, a new, powerful 20V lithium-ion battery, and the TrueCoat Pro-X II is now fully repairable to extend the life of your sprayer!

You’ll get maximum performance, reliability and finish quality that you’d expect from a Graco sprayer.
Features
  • Same Pro Quality Finish as Graco’s professional airless sprayers.
  • Sprays material as designed by the paint manufacturer – no thinning required!.
  • Consistent, even spray pattern for one-pass coverage.
  • Achieve the best spray finish with thin and thick materials by simply adjusting the pressure.
  • Expands the type of jobs that can be sprayed with a wider range of materials.
  • More control and reduced overspray at lower fluid pressure.
  • Graduated ProControl label allows repeatable settings for common applications.
  • Full range of motion of spraying up and down without losing prime – just like a contractor gun.
  • Suction tube swings freely to evacuate virtually all of the material from the cup – fewer refills means more productive spray time!.
  • Ability to replace all parts of the sprayer with simple, modular components to extend the life of the sprayer.
  • Exclusive, reliable high performance battery pack delivers maximum pump performance.
  • Able to spray up to 1 gal (3.78 l) with each battery charge.
  • Allows for ultimate portability – an airless sprayer in the palm of your hand!.
  • Protects pump from corrosion.
  • Clears intake valve at startup to provide reliable priming every time.
  • TrueCoat Pro-X II Cordless Airless Sprayer.
  • 515 ProShot Reversible Tip.
  • Two 20V Lithium-Ion Power Pack Batteries.
  • Lithium-Ion Battery Charger.
  • 32 oz (.95 l) Cup with Cover and 5 Cup Liners.
  • Pump Armor Storage/Start-up Tool.
  • Instructional DVD.
  • Sprayer Storage Case.

Specifications

Brand

84.2 dBA Sound Power Level

  • 84.2 dBA Sound Power Level

Adjustable Pressure Range

  • 7.0 - 14 MPa, 69 -138 bar

Capacity

  • 2.4 Ah, 43.2 Wh

Charging Time

  • 45 minutes to 80 %, 75 minutes to 100 %

Height

  • 26.0 cm

Length

  • 34.9 cm

Maximum Working Pressure

  • 14 MPa, 138 bar

Operating Temperature Range

  • 4° to 32° C

Power Source

  • 120 Vac

Sound Pressure Level (Per ISO 9614-2 Measured at 3.3 Feet (1m)

  • 73.2 dBA Sound Pressure Level

Storage Humidity Range

  • 0 % to 95 % Relative Humidity, Non-Condensing

Storage Temperature Range

  • 0° to 45° C

U.S.

  • Metric

Vibration Level Acceleration

  • Less than 1.7 m/sec²

Voltage (DC) (Maximum Measured Battery Voltage Is 20 V. Average Running Voltage Is 18 V.)

  • 20 V, Max.

Weight

  • 2.94 kg

Width

  • 13.3 cm
