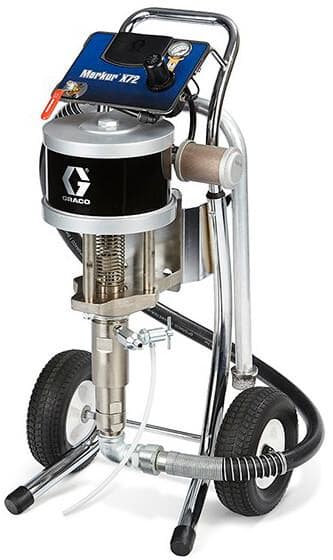

Merkur X72 Airless Sprayer
Images are representations only.

Merkur X72 Airless Sprayer

Brand: Graco, Inc
Request Information
Favorite

The Merkur Airless Sprayer offers a unique combination of power and portability.

Capable of spraying medium to high solids materials at pressures up to 7200 psi, the Merkur series handles a wide range of hot potted protective coatings applications.
Features
  • Portable and lightweight – weighs just 99 pounds (45 kgs) and easy to maneuver.
  • Compact size lets you spray in the smallest areas.
  • Ideal for one-gun applications using up to 0.021 in tip.
  • Powerful – sprays medium to high solids coating materials at pressures up to 7200 psi (500 bar).
  • Affordable – get high quality results with minimal investment.
  • Flexible – ideal for a wide range of applications, including marine, rail and steel fabrication.

Specifications

Brand

Ambient Air Temperature Range

  • 2° to 49° C

Maximum Fluid Temperature

  • 71° C

Maximum Fluid Working Pressure - 16U918, 16V174

  • 50 MPa, 500 bar

Maximum Fluid Working Pressure - 16U920, 16V175

  • 33 MPa, 330 bar

Maximum Pump Air Inlet Pressure

  • 0.7 MPa, 7 bar

Ratio - 16U918, 16V174

  • 72:1

Ratio - 16U920, 16V175

  • 48:1

Sound Data

  • See Merkur Air Motor Technical Data

Weight

  • 45 kg

Wetted Parts - Displacement Pump

  • Stainless Steel, -Plated Carbon Steel, Tungsten Carbide with 6 % Nickel, UHMWPE, PTF

Wetted Parts - Fluid Hoses

  • Nylon

Wetted Parts - Spray Gun

  • See Manual XTR Guns Technical Data

Wetted Parts - Suction Assembly

  • Carbon Steel, Aluminum, Nylon
