EcoQuip 2 EQ200t Elite Towable blasting trailer with 200 CFM @ 125 psi Compressor
Images are representations only.

EcoQuip 2 EQ200t Elite Towable Blasting trailer with 200 CFM @ 125 psi Compressor

Brand: Graco, Inc
Request Information
Favorite

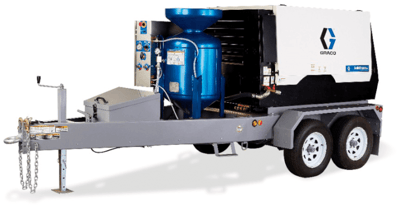

Mid-tier towable abrasive blasting trailer with option of integrated compressor designed for mid to high production projects, the EQ200t is a self-contained trailer with 200 CFM @ 125 psi Tier 4f compressor.

This trailer can also be ordered without a compressor, giving you the option to mount your existing compressor.
Features
  • Vapor Abrasive Blasting: A cleaner, easier path to profitable results:
  • Generates less dust – 92 percent less airborne dust than dry blasting.
  • Uses less water than traditional water-based wet blasting.
  • Optimizes air, water and media ratio – resulting in a fine mist with a blast that is powerful, but with less dust.
  • Uses less media than wet blasting, so clean up is minimal and you save on media costs.

Specifications

Brand

Abrasive Capacity

  • 400 kg

Air Consumption

  • 5.9 M^3/min

Blast Hose Size

  • 31.75 mm I.D.

Dry Weight

  • 1814 kg

Electrical Connector

  • 7-Way Flat Pin

Hitch Size

  • 3” Lunette Ring (Pintel Eye)

Instantaneous Sound Pressure Level

  • 131 dB(C)

Maximum Working Pressure

  • 8.61 bar, 0.86 MPa

Operating Temperature

  • 1.6° - 43.3° C

Pressure Pot Volume

  • 184 Liters

Sound Power Level

  • 139 dBA

Sound Pressure Level

  • 133 dBA

Water Tank Volume

  • 378 Liters

Wet Weight*

  • 2721 kg
