Graco Electric Airless Sprayer, Ultra Max II 1595
Images are representations only.

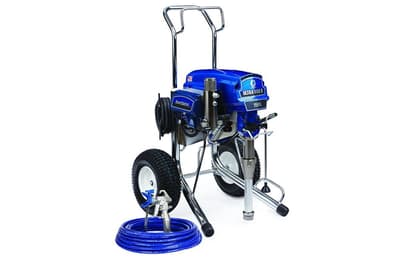

Ultra Max II 1595 Electric Airless Sprayer

Brand: Graco, Inc
Request Information
Favorite

Graco Electric Airless Sprayer, Ultra Max II 1595 Graco Electric Airless Sprayer, Ultra Max II 1595 Graco Electric Airless Sprayer, Ultra Max II 1595
With a 2.8 hp brushless DC motor and the ability to spray up to 1.35 gallons per minute, the Ultra Max II 1595 is Graco’s largest airless electric sprayer.

Because it can handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease, it’s ideal for the large residential and industrial painter.
Features
  • The Standard Series sprayer comes with these "Only On A Graco" features
    • Advantage Drive System Runs quiet and has a lifetime guarantee.
    • MaxPower Brushless DC Motor – Never change brushes with this maintenance-free, totally enclosed motor.
    • SmartControl 3.0 Pressure Control – Delivers consistent spray fan without pressure fluctuations at all spraying pressures, and includes ProGuard technology.
    • Endurance Pump – Amazingly durable and easy-to-service design means less downtime on the job.
    • Easy Out Pump Filter – Spill less material when removing the filter element.
    • Rugged Cart Design – Chrome over steel makes this durable cart last for years.
    • Heavy-Duty Prime Valve – Maintenance-free design withstands high pressure dumping.
  • The ProContractor Series sprayer has all the features of the Standard Series, plus
    • QuikReel – Deploy and rewind up to 300 ft of hose in seconds without twists or coils.
    • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
    • WatchDog Pump Protection System – Saves the pump from damage when paint or texture material runs out or a hose breaks.
    • ProConnect 2 Pump Removal System – Change out the pump using no tools in seconds resulting in quickly getting back to work.
    • FastFlush Cleaning System – Cleans the unit four times faster using only half the water.
    • On-Board Toolbox – End frustration and save time by never again searching for tips, filters, and tools.
    • Ready to Spray – Save setup time, thanks to the 100 ft of hose and gun that’s already attached and ready to use.
  • The IronMan Series sprayer has all the features of the Standard Series, plus
    • MaxLife Extreme Duty Pump – Keeps you working by running 6X longer between repacks.
    • Ceramic and Stainless Steel Ball Sets – Provides maximum versatility no matter what you’re spraying.
    • ProConnect 2 – Change out the pump using no tools in seconds resulting in quickly getting back to work.
    • Roll Cage Frame – Innovative steel design withstands rugged environments and protects critical sprayer components.
    • LED Display – Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics.
    • Flat-Proof Tires – Roll through even the worst jobsite debris without ever going flat.
    • FastFlush Cleaning System – Cleans the unit up to 4X faster using only half the water!
    • WatchDog – Save the pump from damage when paint runs out or if a hose breaks.
    • Additional 50 ft of Hose – Gives you the versatility to work farther away from the sprayer.
  • Standard Series unit includes
    • Contractor Gun
    • RAC X 517 SwitchTip and Guard
    • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose
  • ProContractor Series unit includes
    • Contractor Gun
    • RAC X 517 SwitchTip and Guard
    • 2 each – 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose
  • IronMan Series unit includes
    • Silver Plus Gun
    • RAC X 517 SwitchTip and Guard
    • 1/4 in x 50 ft (6.4 mm x 15 m) BlueMax II Airless Hose
    • 3/8 in x 50 ft (9.5 mm x 15 m) BlueMax II Airless Hose

Specifications

Brand

Height - IronMan

  • 102 cm

Height - ProContractor

  • 99 cm

Height - Standard Series Hi-Boy

  • 74.9 cm (Handle Down), 97.8 cm (Handle Up)

Length - IronMan

  • 76 cm

Length - ProContractor

  • 71 cm

Length - Standard Series Hi-Boy

  • 66 cm

Noise Level - Sound Power, dBA Per ISO 3744, Measured at 3.1 ft (1 m)

  • 91 dBA

Noise Level - Sound Pressure, dBA Per ISO 3744, Measured at 3.1 ft (1 m)

  • 82 dBA

Sprayer - 120 V, A, Hz

  • 20 / 15, 50 / 60

Sprayer - Cycles

  • 29 Per Liter

Sprayer - Fluid Outlet npsm

  • 1/4”

Sprayer - Generator Minimum

  • 5000 W

Sprayer - Maximum Delivery

  • 5.1 Lpm

Sprayer - Maximum Tip Size

  • 0.039

Weight - IronMan

  • 60 kg

Weight - ProContractor

  • 66 kg

Weight - Standard Series Hi-Boy

  • 57 kg

Width - IronMan

  • 62 cm

Width - ProContractor

  • 61 cm

Width - Standard Series Hi-Boy

  • 61 cm

Width - Wetted Parts

  • Zinc & Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
