XM Plural-Component Sprayers

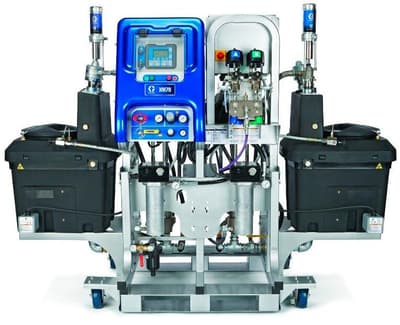

Engineered to handle the toughest protective coatings, the Graco XM Plural-Component Sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

At the heart of the ratio control is Graco's advanced dosing technology. The major component is constantly flowing while the minor component is injected at higher pressures.

Advanced sensing technology allows pumps to compensate for pressure fluctuations, resulting in accurate, on-ratio mixing for better yield and less waste.

Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Start with a base unit. Then select the accessories you need. You get exactly what you need. No more. No less.
Features
  • New dosing technology assures accurate, on-ratio mixing for better yield and less waste.
  • Advanced, intuitive user controls provide real-time display of ratio.
  • USB port lets you easily access and download historical spraying data.
  • Supports multiple spray guns for added productivity.
  • Allows for easy crane transport with eye hooks on air motors.
  • Variable ratio system - handles material ratios from 1:1 to 10:1.

Specifications

Brand

50:1 Maximum Fluid Working Pressure of Mixed Material

  • 35.8 MPa, 358 bar

50:1 Maximum Pump Air Set Pressure

  • 0.70 MPa, 7.0 bar

70:1 Maximum Fluid Working Pressure of Mixed Material

  • 43.5 MPa, 435 bar

70:1 Maximum Pump Air Set Pressure

  • 0.62 MPa, 6.2 bar

Air Filtration

  • 40 micron Main Filter, 5 micron Control Air Filter

Air Inlet Size

  • 3/4” NPT Female

Air Supply Pressure

  • 0.35 to 1.0 MPa, 3.5 to 10.3 bar

Ambient Operating Temperature

  • 0° to 54° C

Ambient Storage Temperature Range

  • -1° to 71° C

Environmental Conditions Rating

  • Indoor/Outdoor Use, Altitude up to 4000 M, Max.

Fluid Filtration

  • 238 micron, Standard on Pump Outlets (Filter Assembly Not Included on Some Models), Alternative 30 Mesh Screens Included

Fluid Inlets without Feed Kits

  • 1-1/4” NPT Male

Fluid Viscosity Range

  • 200-20,000 Cps (Heavier Viscosities Can be Mixed Using Heat, Circulation, and/or Pressure Feeding)

Flush Pump

  • Carbide, PTFE, Stainless Steel, UHMWPE

Hoses

  • Nylon

Manifold

  • Carbon Steel, Nickel Plating, Carbide, 302 Stainless Steel, PTFE, UHMWPE

Maximum Air Consumption

  • 1.96 m³/min Per Lpm / at 0.7 MPa, 7.0 bar in m³/min

Maximum Flow Rate

  • 11.4 L/minute

Maximum Fluid Temperature

  • 71° C

Maximum Pump Inlet Fluid Feed Pressure

  • 1.7 MPa, 17 bar

Metering Valves

  • Carbon Steel, Nickel Plating, Carbide, Polyethylene, Leather

Minimum Flow Rate

  • 0.95 L/minute

Mixed Ratio Range

  • 1:1-10:1 (In 0.1 Increments)

Mixer

  • Stainless Steel Housing with Acetal Elements

Pumps (A & B)

  • Carbon Steel, Alloy Steel, 303, 440, 17-ph Grades Stainless Steel, Zinc & Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE

Ratio Tolerance Range (Before Alarm)

  • ± 5 %

Sound Power

  • 98 dBA at 0.7 MPa, 7 bar

Sound Pressure

  • 86 dBA at 0.7 MPa, 7 bar

Suction Tubes

  • Aluminum

Weight

  • Base Sprayer (XM1A00 & XM5A00 Models) 336.87 kg (Add Component Weights to Base Sprayer Weight for Your Specific Model Weight)
