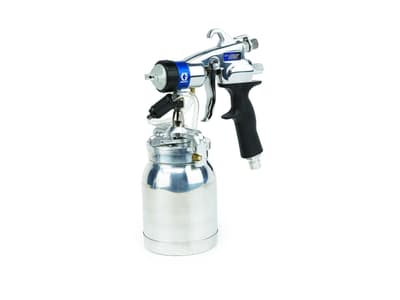

Graco HVLP Spray Gun
Images are representations only.

HVLP EDGE Gun for Contractors

Brand: Graco, Inc
Request Information
Favorite

Graco HVLP Spray Gun Graco HVLP Spray Gun Graco HVLP Spray Gun Graco HVLP Spray Gun
Maximize your spraying performance with the new, innovative HVLP EDGE Gun.

With cutting edge technology such as streamlined, intuitive gun controls, Quick Release fluid set, and optimized air pressure and air flow, the new HVLP EDGE Gun will help you achieve the highest quality finish available in fine finish spraying.
Features
  • Integrated Flow Control [patent pending]
  • Combines material and air flow into one simple control
  • Optimized to spray the majority of fine finish applications
  • Quick adjustment with 360° rotation and indicator for repeatable spray setting
  • Adjustable Air Cap
  • 3-position rotation to change spray pattern
  • Conveniently located at the front of the gun
  • Exclusive Quick Clean Check Valve
  • Allows more air pressure into the material cup to spray heavier material
  • Easily clean and reuse versus replace
  • Located by gun to reduce clogged valves due to paint contamination
  • EasyGlide™ 2-Finger Trigger and Ergonomic Handle
  • trigger has up to 75% lighter pull than competition
  • 2-finger trigger design gives more control while spraying
  • Form-fitted handle stays cool to the touch for extended use
  • Quick Release Needle Design [patent pending]
  • Change out needles from the front of the gun with just a click
  • Easy to change, easy to clean with no tools needed
  • Remove front air cap and nozzle
  • Slide trigger lever to release needle
  • Pull needle out

Specifications

Brand

1-Quart Optional Remote Cup

  • Aluminum, Polyethylene

Air Inlet Size

  • Quick-Disconnect

Bare Spray Gun

  • Stainless Steel, Aluminum

Fluid Inlet

  • 3/8 Nps

Maximum Inlet Air Pressure

  • 0.07 MPa, 0.7 bar

Maximum Inlet Fluid Pressure

  • 0.35 MPa, 3.5 bar

Sound Power Level

  • Less than 65.0 Db(a)

Sound Pressure Level

  • Less than 65.0 Db(a)

Spray Gun Cups

  • Aluminum, Polyethylene
