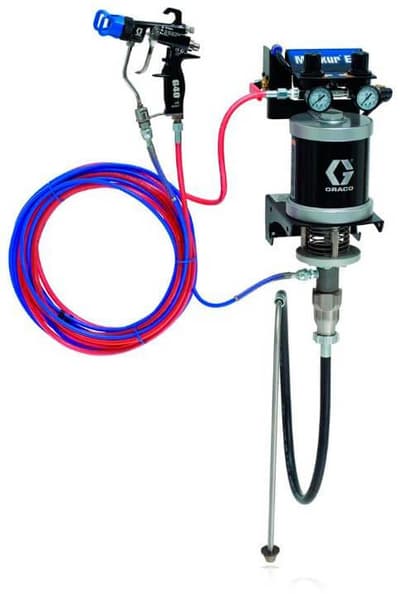

Merkur ES Spray Packages
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Features
  • Quick flush system requires less than 1 minute to flush.
  • 45% less material to fill the system than the leading competitors.
  • 2 to 10 years of proven reliability on key system components.
  • Delivers a superior, consistent spray finish.
  • Low profile spray package makes it easy to transport.
  • Easily set and monitor air control, plus an integrated carrying handle for transport.
  • Air motor provides consistent finishes with smooth, rapid changeover.
  • Suction hose and strainer leaves less material in the supply container.
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage.

Specifications

Brand

24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159) - Sound Power

  • 83.2 dBA

24G693 Air Motor (Models 24F150, 24F151, 24F158, 24F159) - Sound Pressure

  • 76.5 dBA

24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157) - Sound Power

  • 84.5 dBA

24G694 Air Motor (Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157) - Sound Pressure

  • 77.9 dBA

Ambient Air Temperature Range

  • 2-49° C

Maximum Air Input Pressure

  • 7.0 bar, 0.7 MPa

Maximum Fluid Temperature

  • 71° C

Maximum Fluid Working Pressure - Models 24F150, 24F151, 24F158, 24F159

  • 103 bar, 10.3 MPa

Maximum Fluid Working Pressure - Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157

  • 207 bar, 20.7 MPa

Maximum Motor Speed

  • 240 cpm

Maximum Spray Tip Orifice Size

  • 0.483 mm

Package Air Inlet Size

  • 3/8” NPT Female

Package Fluid Outlet Size

  • 1/4 Male NPSM

Ratio - Models 24F150, 24F151, 24F158, 24F159

  • 15:1

Ratio - Models 24F152, 24F153, 24F154, 24F155, 24F156, 24F157

  • 12 / 31 / 1899 6:01

Wetted Parts - Fluid Hose

  • Nylon,-Plated or Stainless Steel

Wetted Parts - Models 24F150, 24F151, 24F154, 24F155, 24F156, 24F157

  • Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, Ultra High Molecular Weight Polyethylene

Wetted Parts - Models 24F152, 24F153, 24F158, 24F159

  • Stainless Steel, Tungsten Carbide, PTFE, Acetal, Leather, Ultra High Molecular Weight Polyethylene

Wetted Parts - Spray Guns

  • See Applicable Gun Manual.

Wetted Parts - Suction Assembly

  • Stainless Steel, Nylon, Acetal, Fluoroelastomer, Polyethylene
