Images are representations only.

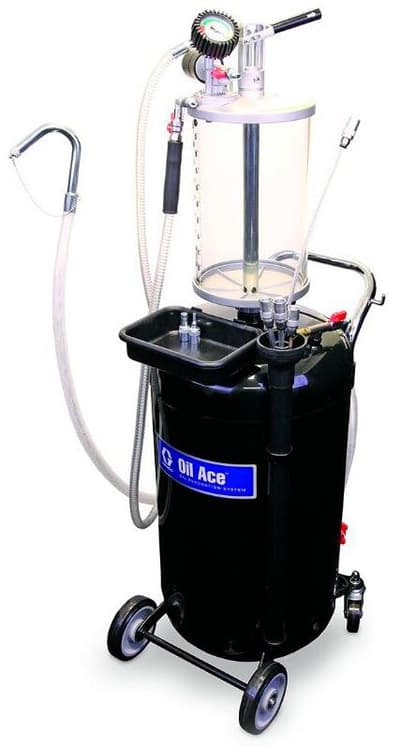

Oil Ace™ Series Vacuum-Assisted or Gravity-Fed Oil Collection Systems
Brand: Graco, Inc
For shops requiring flexibility, use Graco’s multi-purpose used oil evacuation system when fluid drain plugs are either not easily accessible or not available.
Features- Ensures peak performance with easy-to-read vacuum gauge.
- Includes vacuum probes with a variety of suction attachments and adapters.
- Features a 24-gallon (90 L) capacity receiver.
- Includes optional large offset collection pan to prevent splashing.
- Uses shop air to pressurize for easy oil evacuation and draining.
- Includes optional sight glass, which allows for oil quality inspection with clear evacuation chamber and easy-to-read evacuation measurements.
Specifications
Brand
Dry Weight
- 33.6 kg
Funnel Diameter
- 61 cm
Height with Drain Bowl at Highest Adjustment
- 203 cm
Height with Drain Bowl at Lowest Adjustment
- 143.5 cm
Length
- 61 cm
Maximum Working Pressure
- .5 bar, 55 kPa
Recommended Operating Temperature
- -1° to 41° C
Wetted Parts
- Steel, Copper, PVC Plastic, Rubber, Aluminum
Width
- 40.6 cm
