Hydraulic Fixed Ratio Metering System
Images are representations only.

Hydraulic Fixed Ratio Metering System

Brand: Graco, Inc
Request Information

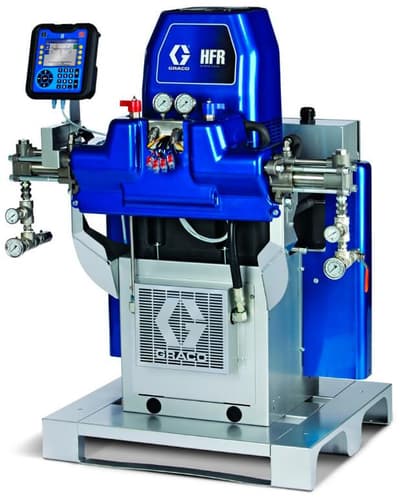

Engineered for versatility, the Graco HFR Metering System packs advanced technologies and precision dispensing into one compact, affordable system.

With its accuracy and repeatability, the Graco HFR lets you hit a specific ratio and volume – the first time, and every time. You reduce scrap and rework with accurate, on-ratio dispensing.

The Graco HFR Metering System is one of the first modular, configurable systems in the polyurethane processing equipment marketplace.

While other systems are custom designed for specific applications, the Graco HFR Metering System is modular and offers more technology for a lower capital investment than traditional custom RIM equipment.
Features
  • Graco HFR technology succeeds the former Reactor IP, which has been discontinued.
  • Precision, on-ratio dispense reduces material waste for a better bottom line
  • More technology for less money
  • Fully configurable
  • Stores 100 shot sizes and five sequences of 20 positions each
  • Compact footprint saves space in your plant
  • Intuitive, easy-to-use controls simplify training
  • Integrated USB lets you download process data onto a flash drive for further analysis

Specifications

Brand

Fluid Inlets - Component A (Red)

  • 1/2" NPT Female

Fluid Inlets - Component B (Blue)

  • 3/4" NPT Female

Fluid Outlet Size - Base Coat Pump

  • 1" QD Camlock Male Coupler

Fluid Outlet Size - Top Coat Pump

  • 3/8" NPSM

Fluid Outlets - Amperage Requirement

  • See Models in Instruction Manual 313997

Fluid Outlets - Component A (Red)

  • #8 (1/2") JIC (3/4-16 UNF), with #5 (5/16") JIC Adapter

Fluid Outlets - Component B (Blue)

  • #10 (5/8") JIC (7/8-14 UNF), with #6 (3/8") JIC Adapter

Fluid Outlets - Fluid Circulation Ports

  • 1/4 Male NPSM, with Plastic Tubing, 17.5 bar, 1.75 MPa Max.

Fluid Outlets - Line Voltage Requirement

  • 230 V / 1-Phase & 230 V / 3-Phase Models: 195-264 V, 50/60 Hz 400 V / 3-Phase: 360-440 V, 50/60 Hz

Fluid Outlets - Sound Power

  • 93 dB

Heater Power - A (Red) & B (Blue) Heaters Total, No Hose, Heated HFR Models Only

  • 12 KW

Heater Power - Hydraulic Reservoir Capacity

  • 34 Liters

Heater Power - Recommended Hydraulic Fluid

  • Citgo A/W Hydraulic Oil, ISO Grade 46

Honda GX 200 Engine - ANSI Power Rating at 3600 RPM

  • 4.8 KW

Inlet Paint Strainer - Base Coat Pump

  • 2" NPSM, #5 Mesh Stainless Steel

Inlet Paint Strainer - Top Coat Pump

  • 1" NPSM, #8 Mesh Stainless Steel

Maximum Delivery Rating - Base Coat Pump

  • 11.36 Liter/min

Maximum Delivery Rating - Top Coat Pump

  • 8.33 Liter/min

Maximum Tip Size - Base Coat Pump

  • 1 Applicator with 10 mm Nozzle

Maximum Tip Size - Top Coat Pump

  • 1 Gun with 0.048" Tip, 2 Gun with 0.035" Tip, 3 Gun with 0.027" Tip, 4 Gun with 0.023" Tip

Maximum Working Pressure - Base Coat Pump

  • 69 bar, 6.9 MPa

Maximum Working Pressure - Top Coat Pump

  • 228 bar, 22.8 MPa

Noise Level - Sound Power

  • 105 dB(A) per ISO 3744

Noise Level - Sound Pressure

  • 96 dB(A) Measured at 1 M

Pump Inlet Size - Base Coat Pump

  • 2" QD Camlock Male Coupler

Pump Inlet Size - Top Coat Pump

  • 1" to 11.5 NPSM

Weight - Units with 12 KW Heaters

  • 394 kg

Weight - Units without Heaters

  • 288 kg

Weight - Wetted Parts

  • Aluminum, Stainless Steel, Zinc-Plated Carbon Steel, Brass, Carbide, Chrome, Fluoroelastomer, PTFE, Ultra-High Molecular Weight Polyethylene, Chemically Resistant O-Rings

Wetted Parts - Wetted Parts

  • Zinc-Plated Carbon Steel, PTFE, Nylon, Polyurethane, Uhmw, Polyethylene, Luoroelastomer, Acetal, Leather, Aluminum, Tungsten Carbide, Nickel- & Zinc-Plated Carbon Steel, Stainless Steel, Chrome Plating
