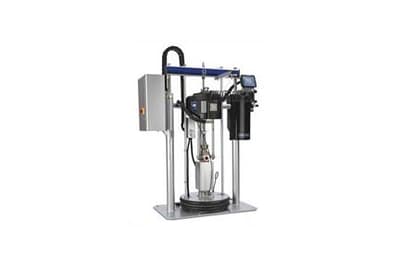

Graco Warm Melt Supply System
Images are representations only.

Warm Melt Supply Systems

Brand: Graco, Inc
Request Information
Favorite

Designed specifically for sealants or adhesives that need to be warmed up to 100°C (212°F), Graco Warm Melt Supply Systems deliver superior temperature control.

Ideal for temperature conditioning applications. An excellent alternative to water-jacketed solutions.
Features
  • Bridges the gap between hot melt and ambient supply systems.
  • Modular approach provides easy snap-on installation and eliminates complex point-to-point wiring.
  • Intuitive, easy-to-use interface.
  • Configurable to fit your unique application and material.

Specifications

Brand

8: 255662, 55 Gal (200 L)

  • PTFE, EPDM, PTFE-Coated Aluminum, Zinc-Plated Carbon Steel, 316 Stainless Steel

9: 255663, 55 Gal (200 L)

  • EPDM, Aluminum, Zinc-Plated Carbon Steel, 316 Stainless Steel

AC Power Units

  • 220-250 Vac, 50/60 Hz, Single-Phase, 57 Amps Full Load Current

D200

  • 10 bar, 1 MPa

D200s

  • 9 bar, 0.9 MPa

D60

  • 10 bar, 1 MPa

Displacement Pump

  • See Check-Mate Displacement Pump & Pump Packages for Wetted Parts, Weight, Flow Rate, & Max.

F: 257729, 5 Gal (20 L)

  • Stainless Steel, Polyurethane, PTFE-Coated Nitrile, Polyethylene, Nitrile, PTFE, 303 SST, 304 SST, 316 SST, 17-4 PH SST

H: 257731, 5 Gal (20 L)

  • Electroless Nickel, Aramind Reinforced Elastomer, Rubber-based PSA, Polyurethane, Polyethylene, Nitrile, Zinc-Plated Carbon Steel, Buna, 1018 Carbon Steel, 304 Stainless Steel, 316 Stainless Steel, 17-4 PH Stainless Steel

Maximum Operating Temperature (Supply System)

  • 70° C

Sound Data

  • See NXT Air Motor
