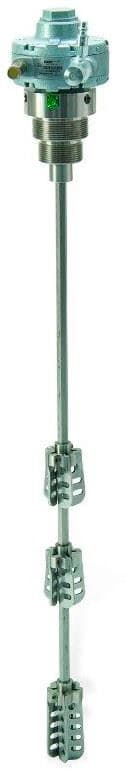

Expanding Blade Agitator

Brand: Graco, Inc
Request Information
Favorite

Expanding Blade Agitator
Graco's expanding blade agitators are engineered for quick installation and operation.

The standard 1.5 and 2 inch threaded housing makes installation and operation as simple as threading on the agitator and adjusting the speed to the desired rate.
Features
  • SST construction
  • Standard 1.5 and 2 inch bung connections
  • Adjustable blades for positioning within the tank
  • Simple screw in installation
  • Includes angle adapter

Specifications

Brand

Air Consumption - Model 24C728 (Low Viscosity)

  • 0.34 m³/min at 400 rpm with 100 psi / 0.7 MPa, 7 bar

Air Consumption - Model 24C729 (High Viscosity)

  • 0.62 Cubic m/min at 400 rpm with 100 psi / 0.7 MPa, 7 bar

Bung Adapter Thread Sizes

  • 1-1/2-11.5 NPSM & 2-11.5 NPSM

Maximum Recommended Agitator Speed

  • 500 rpm

Maximum Working Pressure

  • 0.70 MPa, 7.0 bar

Noise Level Maximum Load - Model 24C728 (Low Viscosity) Power (at 100 psi (0.7 MPa, 7 bar))

  • 80 dB (Tested in Water to ISO 9614-2)

Noise Level Maximum Load - Model 24C728 (Low Viscosity) Pressure (at 100 psi (0.7 MPa, 7 bar))

  • 73.32 dB (Tested in Water to ISO 9614-2)

Noise Level Maximum Load - Model 24C729 (High Viscosity) Power (at 100 psi (0.7 MPa, 7 bar))

  • 82.32 dB (Tested in Water to ISO 9614-2)

Noise Level Maximum Load - Model 24C729 (High Viscosity) Pressure (at 100 psi (0.7 MPa, 7 bar))

  • 75.74 dB (Tested in Water to ISO 9614-2)

Weight - Model 24C728 (Low Viscosity)

  • 4.4 kg

Weight - Model 24C729 (High Viscosity)

  • 5.9 kg

Wetted Parts

  • 303, 18-8, & 304 Stainless Steel
