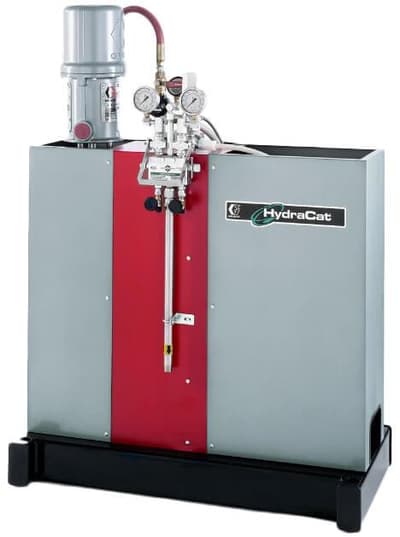

Hydra-Cat Variable Ratio Mechanical Proportioner
Images are representations only.

Hydra-Cat Variable Ratio Mechanical Proportioner

Brand: Graco, Inc
Request Information

Supplying mixed material on demand reduces concerns over pot life and related changes in material viscosity.

On demand mixing also helps eliminate the hazardous waste and cleanup associated with batch mixing. The Hydra-Cat’s variable ratio flexibility allows use with multiple coatings from multiple suppliers without having to purchase new equipment.
Features
  • Provides accurately mixed and proportioned materials on demand.
  • Variable ratio settings allow adjustment to meet requirements and to fine-tune required ratio.
  • High reliability design for minimum maintenance and maximum up-time.
  • Easy-to-use mix manifold allows control of main fluid and catalyst material.

Specifications

Brand

Bulldog - Air Pressure of Sound Test (25 Cycles/Minute)

  • 7 bar, 0.7 MPa

Bulldog - Effective Area

  • 45.61 cm²

Bulldog - Maximum Fluid Working Pressure

  • 347 bar, 34.7 MPa

Bulldog - Maximum Pump Air Input Pressure

  • 6.3 bar, 0.63 MPa

Bulldog - Sound Power Was Measured in Accordance with ISO 3744, 1981.

  • 109 dB(A)

Bulldog - Sound Pressure Level, Sound Pressure Was Measured in Accordance with Cagi Pneurop, 1969.

  • 94 dB(A)

Bulldog - Stroke Length

  • 121 mm

Bulldog - Weight

  • 35.1 kg

Monark Motor - Air Pressure of Sound Test (25 Cycles/Minute)

  • 12.5 bar, 1.25 MPa

Monark Motor - Effective Area

  • 45 cm²

Monark Motor - Maximum Fluid Working Pressure

  • 125 bar, 12.5 MPa

Monark Motor - Maximum Pump Air Input Pressure

  • 12.5 bar, 1.25 MPa

Monark Motor - Sound Power Was Measured in Accordance with ISO 3744, 1981.

  • 112 dB(A)

Monark Motor - Sound Pressure Level

  • 96 dB(A)

Monark Motor - Stroke Length

  • 6 mm

Monark Motor - Weight

  • 5.9 kg

President Motor - Air Pressure of Sound Test (25 Cycles/Minute)

  • 12.5 bar, 1.25 MPa

President Motor - Effective Area

  • 91.55 cm²

President Motor - Maximum Fluid Working Pressure

  • 250 bar, 25.0 MPa

President Motor - Maximum Pump Air Input Pressure

  • 12.5 bar, 1.25 MPa

President Motor - Sound Power Was Measured in Accordance with ISO 3744, 1981.

  • 113 dB(A)

President Motor - Sound Pressure Level

  • 98 dB(A)

President Motor - Stroke Length

  • 102 mm

President Motor - Weight

  • 8.6 kg

Viscount I - Effective Area

  • 45.61 cm²

Viscount I - Stroke Length

  • 102 mm

Viscount I - Weight

  • 83 kg
