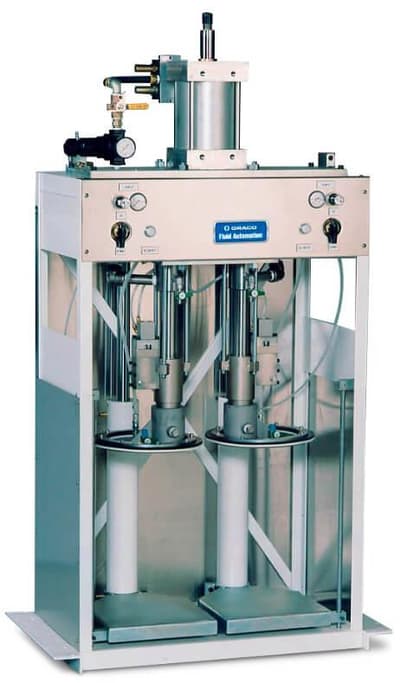

Graco Fluid Automation 8-S-5M & 8-CS4-5M
Brand: Graco, IncWith a variable viscosity range and low-level material shut off switches to maintain ratio and save expensive material waste, the Model S4 series LSR pumps are ideal for medical, consumable and electronic manufacturing.
Features- Eight-inch pneumatic drive cylinder keeps material flowing at a consistent rate Easy Setup and Material Changes
- 5-gallon follow plates allow you to dispense out of straight-sided pails Better Flow Control
- Separate material ram controls allow individual pressure control on each pail for better flow control Superior Quality Mixing
- Use the standard 12-element static mixer to blend A and B material, or the optional 32-element static mixer to improve product quality 8-CS4-5M Features Improved Color Depth
- Pigment ratio is adjustable from 1-5 percent to help you achieve precise color depth. Variable Pump Sizes for Flexibility in Applications:
- Pumps ranging from 1 to 40% of total A and B volume for pigment and other additives Improved Safety:
- The high-pigment pressure safety shutoff circuit and pneumatic main air shutoff valve (CS4-5 version only) offer added safety against excessive pressure or hose rupture on the third-stream line Caster wheels and water-cooling plates for static mixer are optional
