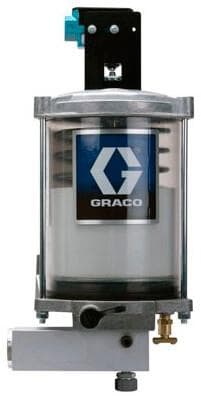

E-Series Pneumatic Pumps
Brand: Graco, IncThe E-Series pump is a great, minimum cost, entry level alternative to standard pneumatic pump products.
This all-in-one pump package comes complete with no assembly required and is easy to install. All pump packages include high-pressure rupture disc assembly and lube outlet check valve.
The E-Series offers many reservoir options for either grease or oil. Great for any application where price is a concern and installation time is at a premium.
Features- Easy field installation of accessories without disturbing existing plumbing.
- Smart pump design with few moving parts ensures long-lasting dependability.
Specifications
Brand
Adj Output E Pump
- 0.160 to 0.491 Sq cm
Air Pressure Operating Range
- 3-10 bar
Air Volume to Operate Per Stroke
- 13.9 Sq cm
Cycle Rate (Maximum) High Pressure Protection
- 10 cpm (Grease), 30 cpm (Light Oil)
Grease Low Level Switch
- SPDT, 15 Amps at 120, 240 & 480 Vac, 1/2 Amp at 120 Vdc, or 1/4 Amp at 240 Vdc
Grease Reservoir Capacity
- 1.36-9.04 kg
Lubricant
- Oil or Grease
Mounting Screw Torque Cylindrical Reservoir
- 8-11 Ft lbs
Mounting Screw Torque Rectangular Plastic Oil Reservoir
- 20” lbs
Oil Low Level Switch
- 10 Watts at 120 Vac (Resistive), 1/4 Amp SPST, or 15 Watts, 120 Vac (Resistive, 1/2 Amp SPDT
Oil Reservoir Capacity
- 1.89-9.45 L
Output Per Stroke
- 0.160 to 0.491 Sq cm
Pump Body Material
- Aluminum
Recommended Lube Pressure (Maximum)
- 138 bar
Reservoir Material
- Plastic & Steel
Rupture Disc High Pressure Protection
- 121 bar
