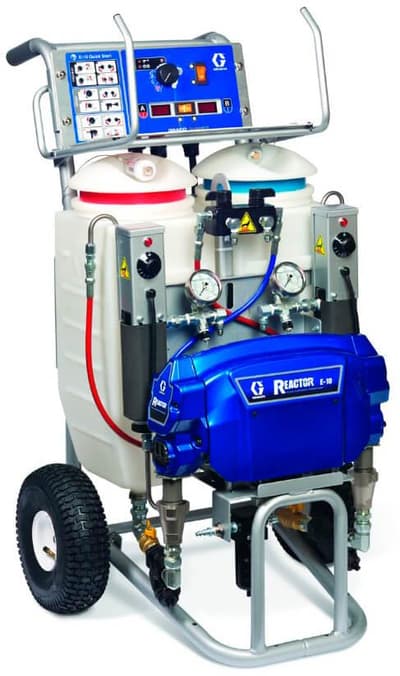

Reactor E-10 Electric Foam and Polyurea Proportioner
Images are representations only.

Reactor E-10 Electric Foam & Polyurea Proportioner

Brand: Graco, Inc
Request Information
Favorite

Graco's Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance.

The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
Features
  • Small size is ideal for on-site portability and hard-to-reach areas
  • One-person operation saves time and money
  • Use as an add-on to your existing spray business
  • Versatile - switch from cold spray to hot spray to foam
  • Saves 30% on material costs compared to disposable foam systems Small ready-to-use systems with big results!
  • Electric power is low draw and plugs into standard outlets
  • Intuitive start, stop and digital temperature display with single knob operation
  • Pressure balance valves give you quick and easy balancing of system pressures
  • Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
  • Easy-to-service fluid section reduces maintenance and increases productivity
  • Electric motor improves performance and reduces operating costs
  • Self-contained translucent material tanks show you that you are spraying on-ratio
  • Heaters and hose give you up to 2000 watts to pre-heat circulating material

Specifications

Brand

Electrical Requirements - Model 249806

  • 120 Vac, 1-Phase, 50/60 Hz, 1800 W, Requires A Single Dedicated 15 A Circuit

Electrical Requirements - Model 249806

  • 120 Vac, 1-Phase, 50/60 Hz, 1800 W, Requires A Single Dedicated 15 A Circuit

Electrical Requirements - Model 249808

  • 240 Vac, 1-Phase, 50/60 Hz, 1800 W, Requires A Single Dedicated 8 A Circuit

Electrical Requirements - Model 249808

  • 240 Vac, 1-Phase, 50/60 Hz, 1800 W, Requires A Single Dedicated 8 A Circuit

Electrical Requirements - Model AP9570, CS9570

  • 120 Vac, 1-Phase, 50/60 Hz, 3500 W, Requires Two Separate, Dedicated 15 A Circuits

Electrical Requirements - Model AP9570, CS9570:

  • 120 Vac, 1-Phase, 50/60 Hz, 3500 W, Requires Two Separate, Dedicated 15 A Circuits

Electrical Requirements - Model AP9571, CS9571

  • 240 Vac, 1-Phase, 50/60 Hz, 3800 W, Requires Two Separate, Dedicated 10 A Circuits

Electrical Requirements - Model AP9571, CS9571

  • 240 Vac, 1-Phase, 50/60 Hz, 3800 W, Requires Two Separate, Dedicated 10 A Circuits

Electrical Requirements - Model AP9572, CS9572

  • 240 Vac, 1-Phase, 50/60 Hz, 3800 W, Requires A Single Dedicated 16 A Circuit

Electrical Requirements - Model AP9572, CS9572:

  • 240 Vac, 1-Phase, 50/60 Hz, 3800 W, Requires A Single Dedicated 16 A Circuit

Fluid Circulation Ports - Air Inlet

  • 1/4” Quick-Disconnect Industrial Typical Pin Fitting

Fluid Circulation Ports - Air Outlet

  • 1/4 Male NPSM

Fluid Circulation Ports - Component A (ISO)

  • -5 JIC Male

Fluid Circulation Ports - Component B (RES)

  • -6 JIC Male

Fluid Outlets - Component A (ISO)

  • -5 JIC Male

Fluid Outlets - Component A (ISO)

  • -5 JIC Male

Fluid Outlets - Component B (RES)

  • -6 JIC Male

Fluid Outlets - Component B (RES)

  • -6 JIC Male

Generator Size (For Reactor E-10 Only) - Heated

  • 5000 W Min.

Generator Size (For Reactor E-10 Only) - Nonheated

  • 2500 W Min.

Gun Compressed Air Requirements - 2K Ultra-Lite Gun with Disposable Mixer Kit

  • 0.392 m³/min

Gun Compressed Air Requirements - 2K Ultra-Lite Gun with Disposable Mixer Kit

  • 0.392 m³/min

Gun Compressed Air Requirements - 2K Ultra-Lite Gun with Joint Fill Kit

  • 0.056 m³/min

Gun Compressed Air Requirements - 2K Ultra-Lite Gun with Joint Fill Kit

  • 0.056 m³/min

Gun Compressed Air Requirements - Fusion Gun (Purge Air & Operating Air)

  • 0.112 m³/min

Gun Compressed Air Requirements - Fusion Gun (Purge Air & Operating Air)

  • 0.112 m³/min

Heater Power - 120 V Models

  • 850 W Each, 1700 W Total

Heater Power - 240 V Models

  • 1000 W Each, 2000 W Total

Hose Markings - A Side

  • Red

Hose Markings - B Side

  • Blue

Maximum Ambient Temperature

  • 43° C

Maximum Fluid Temperature

  • 71° C

Maximum Fluid Working Pressure

  • 140 bar, 14 MPa

Maximum Output at 340 Cycles/Minute

  • 5.4 kg/min

Output Per Cycle, A & B

  • 0.0133 Liter

Overpressure Relief

  • Recirc/Spray Valves Automatically Relieve Excessive Fluid Pressure Back to Supply Tanks

Sound Power, Measured Per ISO 9416-2 - at 2000 psi (14 MPa, 140 bar, 0.72 gpm (2.7 Lpm)

  • 94.4 dBA

Sound Power, Measured Per ISO 9416-2 - Fast Circulation Mode

  • 88.6 dBA

Sound Power, Measured Per ISO 9416-2 - Tank Capacity (Nominal)

  • 26.5 Liters

Sounds Pressure - at 2000 psi (14 MPa, 140 bar), 0.72 gpm (2.7 Lpm)

  • 84.5 dBA

Sounds Pressure - at 2000 psi (14 MPa, 140 bar), 0.72 gpm (2.7 Lpm):

  • 84.5 dBA

Sounds Pressure - Fast Circulation Mode

  • 78.7 dBA

Weight (Approximately, Depending on Model)

  • 72 kg

Wetted Parts

  • Aluminum, Stainless Steel, Carbon Steel, Brass, Carbide, Chrome, Chemically Resistant O-Rings, PTFE, Ultra-High Molecular Weight Polyethylene
