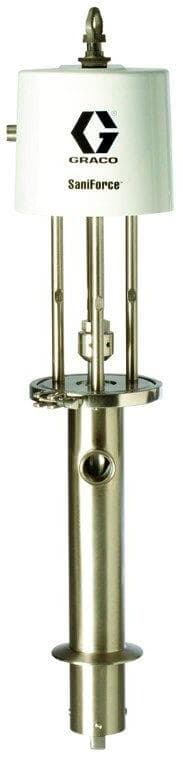

SaniForce 12:1 Sanitary Piston Pump
Images are representations only.

SaniForce 12:1 Sanitary Piston Pump

Brand: Graco, Inc
Request Information
Favorite

SaniForce 12:1 Sanitary Piston Pump SaniForce 12:1 Sanitary Piston Pump
Graco's sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications.

The SaniForce 12:1 sanitary piston pump has flow rates up to 8.5 gpm (32 lpm) and maximum viscosity up to 1,000,000 cps when mounted on a drum or bin unloader.
Features
  • Flow rates up to 8.5 gpm (32 lpm).
  • Maximum fluid pressures up to 1200 psi (83 bar, 8.3 MPa).
  • Can handle up to 1,000,000 cps when mounted on a drum unloader or bin evacuation system (BES).
  • Quick knockdown lower.
  • Suitable to pump products such as: cosmetics, fruit juice concentrates, creamy candy fillings, ice cream variegates, jams and jellies. Product highlights::
  • Quick knockdown lowers are made with 300 series stainless steel for fast cleaning and long-lasting durability.
  • Easily removable FDA-compliant shroud to clean and access modular air valve - reducing downtime.
  • Most advanced air motor on the market.

Specifications

Brand

Air Consumption

  • See SaniForce 12: 1 Instruction Manual.

Air Exhaust Port Size

  • 3/4” NPT Male

Air Inlet Size

  • 1/2” NPT Female

Fluid Inlet Type

  • 10.4 cm Tube with Flange for 15.2 cm Tri-Clamp

Fluid Outlet

  • 5.1 cm Tri-Clamp

Maximum Air Inlet Pressure

  • 6.9 bar, 0.7 MPa

Maximum Ambient Temperature (Air Motor)

  • 49° C

Maximum Fluid Working Pressure

  • 100.4 bar, 10.1 MPa

Maximum Operating Temperature

  • 71° C

Maximum Recommended Pump Speed

  • 60 cpm, 32 Lpm

Pump Cycles Per Gallon/Liter

  • 1.9 Cycles Per Liter

Ratio

  • 12:1

Sound Power* at 70 psi (4.8 bar, 0.5 MPa), 20 cpm

  • 77.2 dBA

Sound Pressure**

  • 70.5 dBA

Weight

  • 55.3 kg

Wetted Parts

  • 316 Stainless Steel, Acetal, Buna-N, UHMWPE, PTFE

Documentation

Brochure

Catalogs

Document

Instructions
