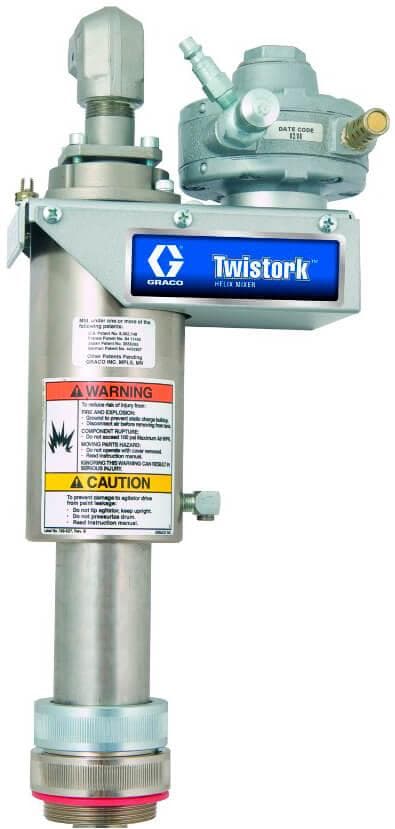

Husky Twistork Agitator
Images are representations only.

Husky Twistork Agitator

Brand: Graco, Inc
Request Information
Favorite

This closed system prevents evaporation, reducing VOC emissions.

This helps maintain the purity of the material in the drum - simplifying drum agitation, plus improving efficiency and quality.
Features
  • Reduce volatile fluid evaporation while maintaining the purity of sealed drum contents.
  • Available with acetal or polypropylene Husky 515 diaphragm pump.
  • Quiet, versatile pump connected to agitator lifts solids from bottom of tank and mixes while maintaining suspension.
  • Mix paint, resins, urethanesm epoxies and latex materials up to 1000 cps.

Specifications

Brand

Air Inlet Size

  • Quick-Coupler, Nipple (Pin)

Aluminum Pumps

  • 26.3 kg

At 400 RPM

  • 0.07 m³/min

At 800 RPM

  • 0.16 m³/min

Ductile Iron Pumps with Stainless Steel Center Section

  • 59.0 kg

Fluid Outlet Size

  • 3/4” NPT Female

Maximum Air Input Pressure

  • 7 bar, 0.7 MPa

Maximum Fluid Output Pressure

  • 7 bar, 0.7 MPa

Maximum Operating Temperature

  • 66° C

Maximum Recommended Agitator Speed

  • 800 rpm

Pump Air Consumption at 12 gpm (45.4 Lpm)

  • Approximately 0.34 m³/min

Stainless Steel Pumps with Aluminum Center Section

  • 50.3 kg

Stainless Steel Pumps with Stainless Steel Center Section

  • 61.0 kg

Weight

  • (14.5 kg)

With 100 cps Material

  • 45.4 Lpm

With 1000 cps Material

  • 4.54 Lpm
