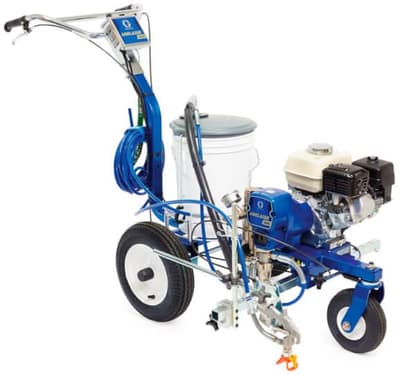

LineLazer 3400 Airless Line Striper
Images are representations only.

LineLazer 3400 Airless Line Striper

Brand: Graco, Inc
Request Information

The LineLazer 3400 is the proven performer for your restripe jobs.

As the preferred choice for 1-gun professional performance, the LineLazer 3400 is perfect for small parking lots, mini malls, seal coating contractors, schools and park and recreation departments.
Features
  • 3 inches longer than the previous version for greater stability and straighter lines Now accepts the 15-gallon hopper and the EZ Bead system EasyMark Gun Adjustment System:
  • "G" clamp system allows for quick movement of gun and guide marks for perfect gun alignment every time Handle Bar System:
  • Adjustable design, allows for optimal ergonomics and reduced vibration for all-day striping comfort with less fatigue Rear Mount Hose Wrap:
  • Provides easy on and off for stenciling applications Easy Reach Controls:
  • Operator controls are located on the handle bars allowing adjustments to be made without stopping Honda Engine:
  • Contractor preferred, excellent power and proven reliability Endurance Pump:
  • Industry-best pump performance in this field-proven design Advantage Drive:
  • With hardened steel gears, this is the longest lasting drive in the industry EasyOut Pump Filter:
  • Large filtering area reduces tip clogs and ensures paint quality Includes:
  • Flex Plus Striping Gun
  • LineLazer RAC 5 SwitchTip and Guard
  • 1/4 in x 50 ft BlueMax II Airless Hose

Specifications

Brand

ANSI Power Rating at 3600 RPM

  • 4.0 HorsePower

Height

  • 103 cm

Left Hand

  • 3.89 m/sec²

Length

  • 156 cm

Right Hand

  • 4.94 m/sec²

Sound Power

  • 100 dB(A) per ISO 3744

Sound Pressure

  • 86 dB(A) Measured at 1 M

Weight

  • 68 kg

Width

  • 81 cm
