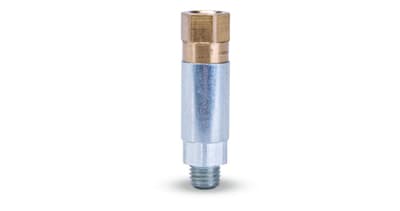

Oil Piston Distributors
Brand: Graco, Inc
Piston distributor style single line meters known world-wide for fast, simple installation.
Ideal for medium-sized machine tools, our piston distributor style, single line meters are available in a wide range of outputs and are easy to customize.
Ordering cast manifolds and metering nipples separately saves you money by only ordering what you need.
Features- Volume outputs ranging from 0.01 to 0.16 cubic inches.
- Several manifold options with up to 10 ports allow for fast installation and simple future expansion.
- 5 metering nipple options.
- Direct-to-bearing versions available for use in specialized applications.
Specifications
Brand
Grease - Gasket Material
- FPM
Grease - Lubricant
- Synthetic & Mineral Oils, Fluid Grease NLGI 00-000
Grease - Pressure Relief
- Lt, 1.5 bar, 0.15 MPa
Grease - Working Pressure
- 10 to 45 bar, 1.0 to 4.5 MPa
Grease - Working Temperature
- 0° to 70° C
Oil - Gasket Material
- FPM
Oil - Lubricant
- Synthetic & Mineral Oils
Oil - Pressure Relief
- Lt, 1.5 bar, 0.15 MPa
Oil - Viscosity
- 32 to 2000 mm²/sec
Oil - Working Pressure
- 10 to 45 bar, 1.0 to 4.5 MPa
Oil - Working Temperature
- 0° to 70° C
Piston Distributor Mounted Directly to Greasing Point - Oil - Gasket Material
- FPM
Piston Distributor Mounted Directly to Greasing Point - Oil - Lubricant
- Synthetic & Mineral Oils
Piston Distributor Mounted Directly to Greasing Point - Oil - Pressure Relief
- Lt, 3 bar, 0.3 MPa
Piston Distributor Mounted Directly to Greasing Point - Oil - Viscosity
- 32 to 2000 mm²/sec
Piston Distributor Mounted Directly to Greasing Point - Oil - Working Pressure
- 18 to 50 bar, 1.8 to 5.0 MPa
Piston Distributor Mounted Directly to Greasing Point - Oil - Working Temperature
- 0° to 70° C
