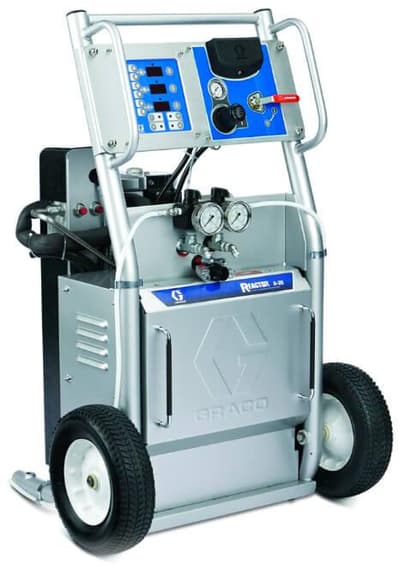

Reactor A-25 Air-Driven Foam Proportioner
Images are representations only.

Reactor A-25 Air-Driven Foam Proportioner

Brand: Graco, Inc
Request Information
Favorite

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite.

It maintains consistent temperature control, even when you're spraying at maximum flow rates - resulting in better quality foam.
Features
  • Maintains temperature setpoints for better yield.
  • Maintains consistent output pressure for uniform spray pattern.
  • Easy to operate and maintain.
  • Best choice for affordability and durability.

Specifications

Brand

200-240 Vac Nominal, 1-Phase

  • 195-253 Vac

200-240 Vac Nominal, 3-Phase Delta

  • 195-253 Vac

350-415 Vac Nominal, 3-Phase Wye (200-240 Vac Line-to-Neutral)

  • 338-457 Vac

Air Consumption with 02 Tip at 1500 psi Stall Pressure

  • 0.8 m³/min

Air Inlet Filter Mesh

  • 40 micron

Amperage Requirement (Full Load Peak)*

  • 40 A @ 230 V, 1-Phase, 32 A @ 230 V, 3-Phase, 18.5 A @ 380 V, 3-Phase

Component A (Isocyanate) Inlet

  • 3/4” NPT Female Swivel

Component B (Resin) Inlet

  • 3/4” NPT Female Swivel

Fluid Inlet, Strainer Filter

  • 20 Mesh Standard

Heater Power

  • 6000 Watts

Hose Power

  • 2790 Watts

Machine Maximum Power with Hose

  • 9000 Watts

Maximum Air Supply Pressure

  • 0.9 MPa, 9 bar

Maximum Air Working Pressure

  • 550 kPa, 5.5 bar

Maximum Ambient Temperature

  • 49° C

Maximum Fluid Inlet Pressure

  • 2.1 MPa, 21 bar or 15 % of Output Pressure

Maximum Fluid Working Pressure

  • 14 MPa, 138 bar

Maximum Heated Hose Length

  • 210 Ft of 3/8 I.D.

Maximum Heater Fluid Temperature

  • 88° C

Maximum Hose Fluid Temperature

  • 82° C

Maximum Output

  • 11.4 kg/min

Output Per Cycle, A & B

  • 0.095 Ltr/cycle

Pressure Ratio

  • 12 / 31 / 1899 1:01

Recirculation / Block Hose Connections

  • Iso (A) Side: #5 JIC (m), Resin (B) Side: #6 JIC (m)

Sound Power (See NXT Air Motor Manual)

  • 80.1 dBA

Sound Pressure (See NXT Air Motor Manual)

  • 70.2 dBA

Viscosity Range

  • 250-1500 Centipoise Typical

Weight

  • 140.6 kg

Wetted Parts

  • Carbon Steel, Stainless Steel, Chrome, Aluminum, Fluoroelastomer, PTFE, Nylon
