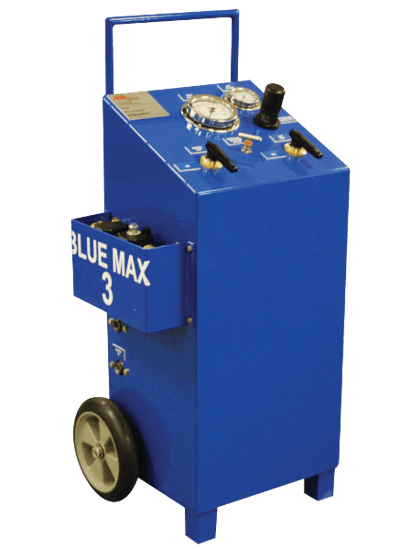

Blue Max 3 Portable Air Driven Pump
Brand: Curtiss-Wright CorporationAvailable in a number of output pressures ranging from 1,000 - 10,000 PsiG or 68.9 - 689.5 BarG.
Higher pressures available.
Features- All Stainless Steel Wetted Components
- An Easy to Read 4” Diameter - 102 mm Pressure Gauge
- Supplied with Mating Quick Connect Couplings for Air Inlet, Water Inlet and High Pressure Outlet Connections
- The Enclosed Cabinet Design Provides a Safe and Quick Operation, and Protects Components from Damage
Specifications
Max Pressure
- 1000 PsiG / 68.9 BarG
- 3600 PsiG / 248.2 BarG
- 10000 PsiG / 689.5 BarG
Capacity 100 CPM
- 7.50 GPM / 28.39 LPM
- 2.70 GPM / 10.22 LPM
- 1.00 GPM / 3.79 LPM
- 34 GPM / 128.70 LPM
Pressure Ratio
- 10:1
- 36:1
- 97:1
- 100:1
Maximum SCFM Required
- 56 SCFM / 95.1 SCMH
- 150 SCFM / 254.9 SCMH
- Total required SCFM to produce rated flow at maximum pump pressure. This is relevant only when the system is used for continuous injection at the maximum rated pressure. Normal testing applications require much less SCFM to begin with and fall to (0) at stall test pressure.
Air Pressure Required
- 100 PsiG / 6.9 BarG
Depth
- 15"
- 381mm
Width
- 21"
- 533.4mm
Height
- 44"
- 1117.6mm
Approximate Shipping Weight
- 100lbs
- 45.4 kg
- Suitable for All Hydrostatic Testing Applications
