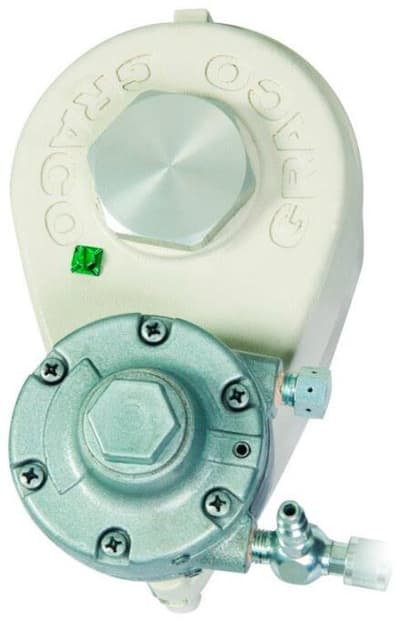

In-Drum Back-Geared Agitator
Images are representations only.

In-Drum Back-Geared Agitator

Brand: Graco, Inc
Request Information
Favorite

In-Drum Back-Geared Agitator In-Drum Back-Geared Agitator
Graco’s heavy-duty back-geared agitator drives are available for drums and tanks with pre-installed blades.

This in-drum agitator features a reliable, leak free operation and can be used in a variety of industrial applications. Its oil free gear box design eliminates contamination concerns when mixing materials.

Backed by Graco's reputation for durable, long lasting products,. Graco's agitators are designed to outperform other agitators in their class.
Features
  • ATEX approval for hazardous locations.
  • Oil free gear box design.
  • Simple screw in installation.
  • Interchangeable adapters and couplers to meet a variety of drum designs.
  • Corrosion resistant stainless steel construction.

Specifications

Brand

Air Consumption

  • 0.08 to 0.85 m³/min

Air Inlet Size

  • Mates with 1/4” NPT Female Quick-disconnect, Part No. 208536

From Top of Air Motor to End of Agitator Shaft (No Nut)

  • 965 mm

From Top of Air Motor to End of Siphon Tube (No Fittings)

  • 1092 mm

Gear Reducer Ratio

  • 12 / 31 / 1899 0:01

Maximum Air Input Pressure

  • 7 bar

Maximum Flow at 100 cps

  • 45.5 Lpm

Maximum Flow at 1000 cps

  • 4.5 Lpm

Maximum Recommended Shaft Rmp

  • 100

Motor Power Rating at 1200 RPM (Shaft at 50 RPM), Using 12 cfm/0.34 Cu m/min

  • 186 W

Sound Power (Maximum Noise Conditions (100 RPM (Shaft) Agitating An Empty Container))

  • 86.4 dBA Measured Per ISO 3744-1981

Sound Power (Typical Operating Conditions (50 RPM (Shaft) Agitating 300 cps Water-based Material))

  • 77.3 dBA Measured Per ISO 3744-1981

Sound Pressure

  • 63.8 dBA Measured Per ISO 3744-1981

Sound Pressure (Maximum Noise Conditions (100 RPM (Shaft) Agitating An Empty Container))

  • 72.9 dBA Measured Per ISO 3744-1981

Span of Agitator Blades

  • 508 mm

Weight

  • 11.7 kg

Wetted Parts

  • 304 Stainless Steel, 304/304L Stainless Steel, Acetal, A/F, Nylon, PTFE

Width of Agitator Blades

  • 76 mm
