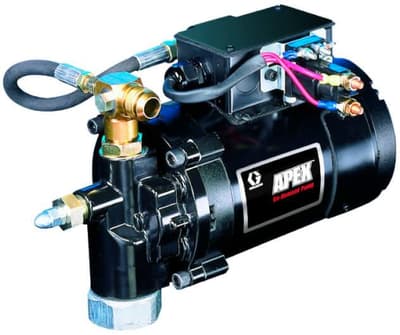

APEX On-Demand Dispensing Pumps
Brand: Graco, Inc
Keep air available for shop tools with this on-demand pump! With output up to 650 psi (44 bar) and 4 gpm (15 lpm), you can easily add oil dispense to your operation without replacing your compressor.
Our line of APEX pumps are available in AC and DC configurations to meet your fluid transfer needs!
Features- On-demand sensing system automatically starts and stops the pump.
- Low operating and installation costs.
- Available in 12 Vdc and 115 Vac.
- TENV electric motor for demanding environments.
- Extremely quiet pump operation.
- Output flow is continuous and non-pulsating.
- Inlet and outlet check valves with thermal relief valves included.
Specifications
Brand
Horsepower - Model 260110
- 3/4 hp
Horsepower - Model 260111
- 1 hp
Horsepower - Model 260112
- 3/4 hp
Horsepower - Model 260113
- 1-1/2 hp
Horsepower - Model 260114
- 2 hp
Inlet Size
- 3/4” NPT
Maximum Current - Model 260110
- 10.6 Amps
Maximum Current - Model 260111
- 13.6 Amps
Maximum Current - Model 260112
- 62.0 Amps
Maximum Current - Model 260113
- 18.0 Amps
Maximum Current - Model 260114
- 21.0 Amps
Maximum Working Pressure - Model 260110
- 25.9 bar, 2.59 MPa
Maximum Working Pressure - Model 260111
- 38.5 bar, 3.85 MPa
Maximum Working Pressure - Model 260112
- 28 bar, 2.8 MPa
Maximum Working Pressure - Model 260113
- 32.9 bar, 3.29 MPa
Maximum Working Pressure - Model 260114
- 45.5 bar, 4.55 MPa
Outlet Size
- 1/2” NPT Female
Output Flow - Model 260110
- 9 Lpm
Output Flow - Model 260111
- 11 Lpm
Output Flow - Model 260112
- 11 Lpm
Output Flow - Model 260113
- 16 Lpm
Output Flow - Model 260114
- 16 Lpm
Wetted Parts
- Carbon Steel with Zinc Plating, Stainless Steel, Galvanized Steel, Aluminum, Nitrile, Rubber, Pvc, PVC Cement
