Graco Transfer Pump, Senator 19:1
Images are representations only.

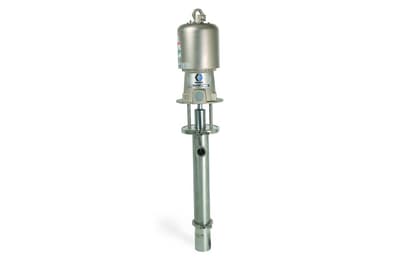

Senator 19:1 Transfer Pump

Brand: Graco, Inc
Request Information

With higher pump pressures and flow rates, Graco's postive displacement, priming piston pumps handle a broad range of inks with ease.

They offer durability, power and reliability in many ink manufacturing or printing applications.
Features
  • Produces up to 1900 psi when mounted on a 800 pump.
  • Positive displacement, priming piston design provides uniform and easily-controlled delivery.
  • Extremely durable pump with long-life packing design, and low maintenance.
  • Evacuates with pails, drums and bins with ease.

Specifications

Brand

Air Inlet Size

  • 3/4" NPSM Female

Air Motor Piston Effective Diameter

  • 154 cm²

Displacement Pump Effective Area

  • 8 cm²

Displacement Pump Weight

  • Approximately 37 kg

Fluid Flow at 60 Cycles/Minute

  • 10.6 Liters/min (2.8 gpm)

Fluid Outlet Size

  • 1" Female NPT

Maximum Air Input Pressure

  • 0.8 MPa, 8.4 bar

Maximum Fluid Working Pressure

  • 15 MPa, 157 bar

Maximum Pump Operating Temperature

  • 82° C

Pump Cycles Per 3.8 Liters (1 Gallon)

  • 21

Ratio

  • 19:1

Stroke Length

  • 120 mm

Weight

  • Approximately 73 kg

Wetted Parts

  • Carbon Steel, Chrome, Zinc, & Nickel Plating, 304, 316, 440, & 17-4 PH Grades of Stainless Steel, Alloy Steel, Ductile Iron, PTFE, Glass-Filled PTFE, Ultra-High Molecular Weight Polyethylene
